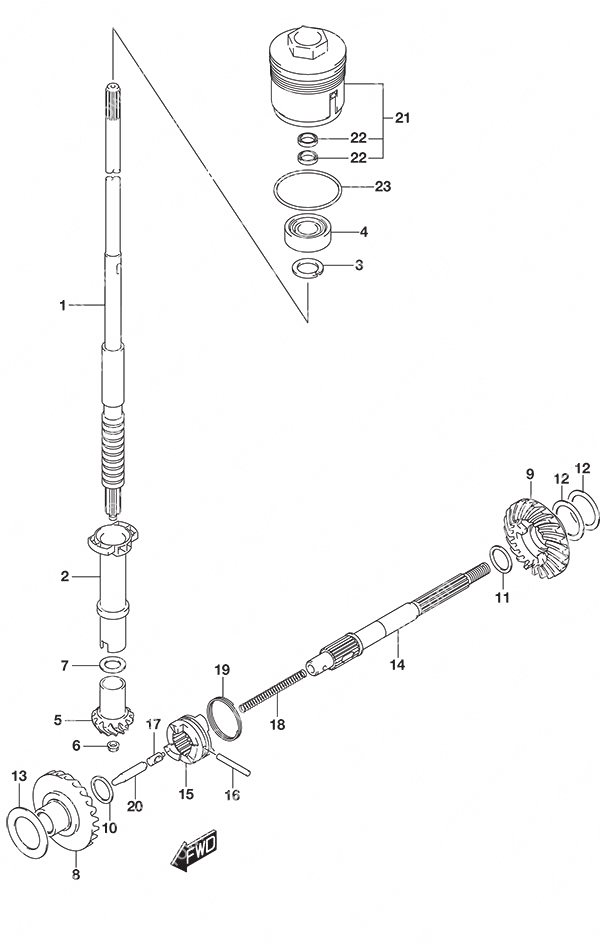

Fig. 220 - Transmission для Suzuki DF 30A - 2016 года выпуска
-
№АртикулНазвание
-
1-157110-94L00-000 Drive Shaft (S)
w/Transom (S)Drive Shaft (S)
w/Transom (S) -
1-257110-94L10-000 Drive Shaft (L)
w/Transom (L)Drive Shaft (L)
w/Transom (L) -
257133-94L00-000 Drive Shaft CollarDrive Shaft Collar
-
309166-17005-000 Washer (17.1x26x3.0)Washer (17.1x26x3.0)
-
409265-17002-000 Bearing (17x40x17.25)Bearing (17x40x17.25)
-
557311-91L00-000 Pinion GearPinion Gear
-
609159-08046-000 NutNut
-
7-109160-15030-000 Washer (1.7)Washer (1.7)
-
7-209160-15031-000 Washer (1.8) (NLA)Washer (1.8) (NLA)
-
7-309160-15032-000 Washer (1.9) (NLA)Washer (1.9) (NLA)
-
7-408211-15203-000 Washer (2.0)Washer (2.0)
-
7-509160-15033-000 Washer (2.1) (NLA)Washer (2.1) (NLA)
-
7-608211-15204-000 Washer (2.2)Washer (2.2)
-
7-709160-15053-000 Washer (2.3)Washer (2.3)
-
7-809160-15054-000 Washer (2.4)Washer (2.4)
-
857510-94L00-000 Forward GearForward Gear
-
957521-94L00-000 Reverse GearReverse Gear
-
1009181-16008-000 Shim (2.0)
FwdShim (2.0)
Fwd -
11-109160-20068-000 Washer (1.6)
RevWasher (1.6)
Rev -
11-209160-20069-000 Washer (1.8)
RevWasher (1.8)
Rev -
11-309160-20070-000 Washer (2.0)
RevWasher (2.0)
Rev -
11-409160-20071-000 Washer (2.2)
RevWasher (2.2)
Rev -
11-509160-20072-000 Washer (2.4)
RevWasher (2.4)
Rev -
11-609160-20073-000 Washer (2.6)
RevWasher (2.6)
Rev -
12-108221-30404-000 Shim (0.2)
RevShim (0.2)
Rev -
12-209181-30158-000 Shim (0.50)
RevShim (0.50)
Rev -
12-309181-30162-000 Shim (0.8)
RevShim (0.8)
Rev -
13-109181-25190-000 Shim (0.80)
FwdShim (0.80)
Fwd -
13-209181-25248-000 Shim (0.90)
FwdShim (0.90)
Fwd -
13-309181-25251-000 Shim (1.00)
FwdShim (1.00)
Fwd -
13-409160-25032-000 Thrust Washer (1.10)
FwdThrust Washer (1.10)
Fwd -
13-509160-25033-000 Thrust Washer (1.20)
FwdThrust Washer (1.20)
Fwd -
13-609160-25034-000 Thrust Washer (1.30) (NLA)
FwdThrust Washer (1.30) (NLA)
Fwd -
13-709160-25035-000 Thrust Washer (1.40)
FwdThrust Washer (1.40)
Fwd -
13-809181-25268-000 Shim (1.50)
FwdShim (1.50)
Fwd -
1457610-96311-000 Propeller Shaft AssemblyPropeller Shaft Assembly
-
1557621-91L21-000 Clutch Dog ShifterClutch Dog Shifter
-
1609202-05021-000 Clutch Dog Shifter PinClutch Dog Shifter Pin
-
1709209-08016-000 Push PinPush Pin
-
1809440-07074-000 Return SpringReturn Spring
-
1909440-35004-000 SpringSpring
-
2057631-95JL0-000 Push RodPush Rod
-
2156130-94L00-000 Drive Shaft Oil Seal HousingDrive Shaft Oil Seal Housing
-
2209282-17006-000 • Oil Seal• Oil Seal
-
2309280-50009-000 O-RingO-Ring
