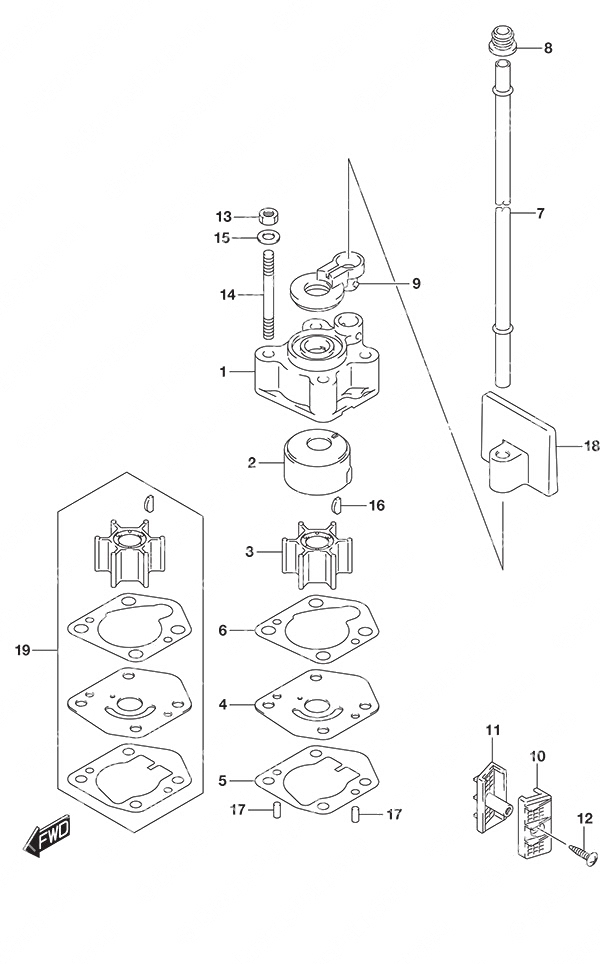

Fig. 160 - Water Pump для Suzuki DF 20A - 2017 года выпуска
-
№АртикулНазвание
-
117411-94J00-000 Water Pump CaseWater Pump Case
-
217413-94J00-000 Water Pump Case SleeveWater Pump Case Sleeve
-
317461-939M0-000 Water Pump ImpellerWater Pump Impeller
-
417471-99J00-000 Water Pump PlateWater Pump Plate
-
517472-99J00-000 Water Pump Plate GasketWater Pump Plate Gasket
-
617473-94J00-000 Water Pump Case GasketWater Pump Case Gasket
-
7-117561-99J00-000 Water Tube (S)
w/Transom (S)Water Tube (S)
w/Transom (S) -
7-217561-99J10-000 Water Tube (L)
w/Transom (L)Water Tube (L)
w/Transom (L) -
7-317561-99J20-000 Water Tube (X)
w/Transom (X)Water Tube (X)
w/Transom (X) -
817563-94J00-000 Water Tube GrommetWater Tube Grommet
-
917564-99J00-000 Water Pump Case BushingWater Pump Case Bushing
-
1017631-99J20-000 Port Water FilterPort Water Filter
-
1117632-99J30-000 Starboard Water FilterStarboard Water Filter
-
1203141-0416A-000 ScrewScrew
-
1329141-93J00-000 Nut (6mm)Nut (6mm)
-
1409108-06141-000 Stud BoltStud Bolt
-
1509160-06082-000 Washer (6.5x13x1.0)Washer (6.5x13x1.0)
-
1609420-03009-000 KeyKey
-
1709202-04008-000 Dowel Pin (4x9)Dowel Pin (4x9)
-
1817565-99J00-000 Water Tube GuideWater Tube Guide
-
1917400-99J02-000 Water Pump Repair Kit
OptionalWater Pump Repair Kit
Optional
