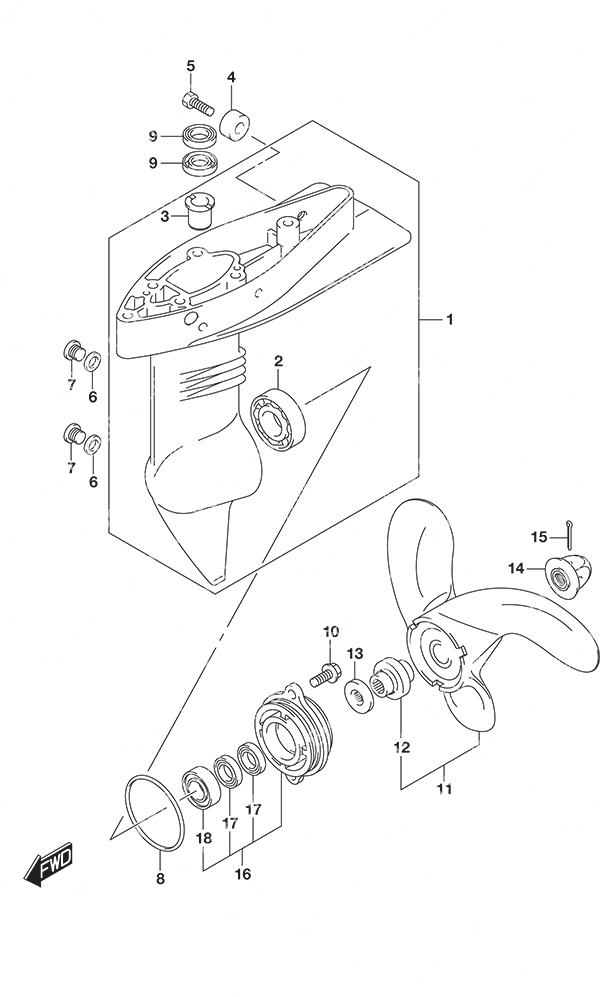

Fig. 407 - Gear Case для Suzuki DF 2.5 - 2017 года выпуска
-
№АртикулНазвание
-
155110-97J51-YAY Gear Case HousingGear Case Housing
-
209262-17019-000 • Bearing (17x35x8)• Bearing (17x35x8)
-
359311-97J20-000 • Pinion Bushing• Pinion Bushing
-
455321-87J01-000 Aluminum AnodeAluminum Anode
-
509103-06281-000 Bolt (6x14)Bolt (6x14)
-
659178-97J00-000 Drain Plug GasketDrain Plug Gasket
-
709248-08001-000 Drain PlugDrain Plug
-
859291-97J00-000 O-RingO-Ring
-
909282-10008-000 Oil Seal (10x21x4.5)Oil Seal (10x21x4.5)
-
1009116-06225-000 Bolt (6x16)Bolt (6x16)
-
1158110-97JA0-019 Propeller (3x7-1/2x6)Propeller (3x7-1/2x6)
-
1258120-97JA0-000 • Propeller Bushing• Propeller Bushing
-
1357635-91JL0-000 Propeller StopperPropeller Stopper
-
1458130-91JL0-000 Propeller NutPropeller Nut
-
1509204-03003-000 Prop Nut Cotter PinProp Nut Cotter Pin
-
1656120-97J50-YAY Propeller Shaft HousingPropeller Shaft Housing
-
1709282-12L05-000 • Oil Seal• Oil Seal
-
1809262-12001-000 • Bearing (12x28x8)• Bearing (12x28x8)
