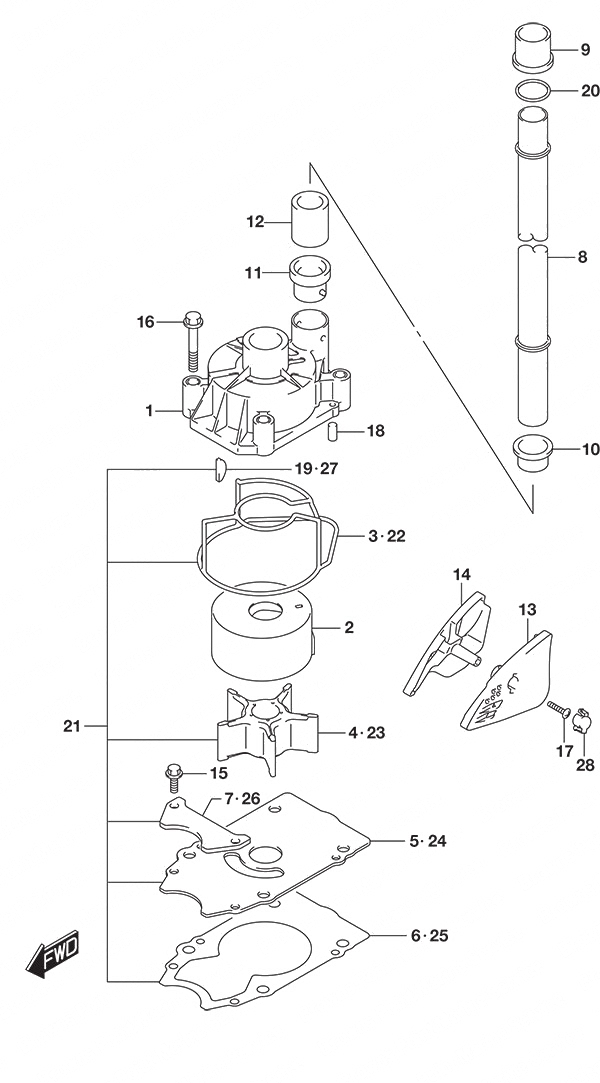

Fig. 160 - Water Pump для Suzuki DF 300AP - 2017 года выпуска
-
№АртикулНазвание
-
117410-93J01-000 Water Pump CaseWater Pump Case
-
217413-93J02-000 Water Pump Case SleeveWater Pump Case Sleeve
-
317416-93J00-000 Replaced by 17416-93J01Replaced by 17416-93J01
-
417461-93J00-000 Water Pump ImpellerWater Pump Impeller
-
517471-98J01-000 Water Pump PlateWater Pump Plate
-
617472-98J00-000 Water Pump Plate GasketWater Pump Plate Gasket
-
717473-98J00-000 Water Pump Plate No. 2Water Pump Plate No. 2
-
8-117561-93J03-000 Water Tube (X)
w/Transom (X)Water Tube (X)
w/Transom (X) -
8-217561-93J13-000 Water Tube (XX)
w/Transom (XX)Water Tube (XX)
w/Transom (XX) -
917562-93J01-000 Upper Water Tube BushingUpper Water Tube Bushing
-
1017563-93J01-000 Lower Water Tube BushingLower Water Tube Bushing
-
1117564-93J01-000 Water Pump Case BushingWater Pump Case Bushing
-
1217612-93J00-000 Water Tube SpacerWater Tube Spacer
-
1317631-93L10-000 Port Side Water FilterPort Side Water Filter
-
1417632-93L10-000 Starboard Side Water FilterStarboard Side Water Filter
-
1529116-93J00-000 Bolt (6x20)Bolt (6x20)
-
1609116-08131-000 Bolt (8x45)Bolt (8x45)
-
1709132-04034-000 Screw (4x18)Screw (4x18)
-
1809202-06031-000 Knock Pin (6x12)Knock Pin (6x12)
-
1909420-05009-000 Water Pump KeyWater Pump Key
-
2009168-20002-000 Gasket (20.5x30x1.5)
Upper Water TubeGasket (20.5x30x1.5)
Upper Water Tube -
2117400-98J03-000 Water Pump Repair Kit
OptionalWater Pump Repair Kit
Optional -
2217416-93J00-000 • Replaced by 17416-93J01
Optional• Replaced by 17416-93J01
Optional -
2317461-93J00-000 • Water Pump Impeller
Optional• Water Pump Impeller
Optional -
2417471-98J01-000 • Water Pump Plate
Optional• Water Pump Plate
Optional -
2517472-98J00-000 • Water Pump Plate Gasket
Optional• Water Pump Plate Gasket
Optional -
2617473-98J00-000 • Water Pump Plate No. 2
Optional• Water Pump Plate No. 2
Optional -
2709420-05009-000 • Water Pump Key
Optional• Water Pump Key
Optional -
2817633-93L00-000 Water Filter CoverWater Filter Cover
