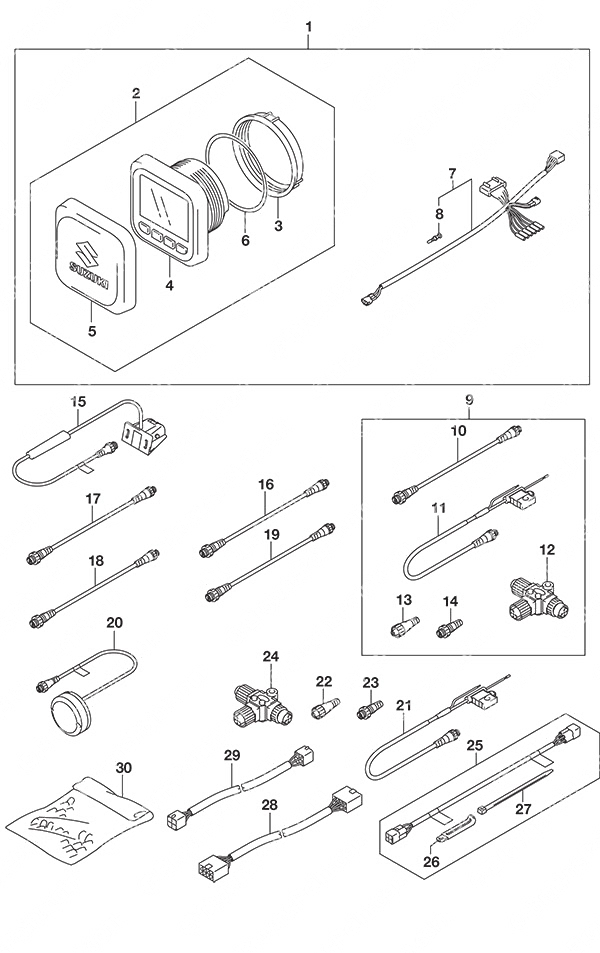

Fig. 600 - Opt: Multi Function Gauge для Suzuki DF 20A - 2019 года выпуска
-
№АртикулНазвание
-
134000-96L49-000 SMG4 Single Engine Mech Multi Function Gauge KitSMG4 Single Engine Mech Multi Function Gauge Kit
-
234011-96L42-000 • SMG4 Multi Function Gauge• SMG4 Multi Function Gauge
-
334112-96L00-000 •• Gauge Nut•• Gauge Nut
-
434193-96L00-000 •• Gauge Bezel•• Gauge Bezel
-
534211-96L00-000 •• SMG4 Multi-Function Gauge Sun Cover•• SMG4 Multi-Function Gauge Sun Cover
-
634825-96L00-000 •• Gauge Packing•• Gauge Packing
-
736661-96L00-000 • Gauge Adapter• Gauge Adapter
-
836615-96300-000 •• Resin Terminal•• Resin Terminal
-
936001-88L00-000 Wire SetWire Set
-
10990C0-88104-000 • 2' Extension cable• 2' Extension cable
-
11990C0-88112-000 • SMIS Power Cable• SMIS Power Cable
-
12990C0-88110-000 • T-Connector• T-Connector
-
13990C0-88113-000 • Terminating Resistor 120 ohm Female• Terminating Resistor 120 ohm Female
-
14990C0-88114-000 • Terminating Resistor 120 ohm Male• Terminating Resistor 120 ohm Male
-
15990C0-88317-000 Speed Wheel SensorSpeed Wheel Sensor
-
16990C0-88104-000 2' Extension cable2' Extension cable
-
17990C0-88105-000 6' Extension cable6' Extension cable
-
18990C0-88107-000 15' Extension cable15' Extension cable
-
19990C0-88108-000 25' Extension cable25' Extension cable
-
20990C0-88122-000 GPS Receiver Module w/Heading SensorGPS Receiver Module w/Heading Sensor
-
21990C0-88112-000 SMIS Power CableSMIS Power Cable
-
22990C0-88113-000 Terminating Resistor 120 ohm FemaleTerminating Resistor 120 ohm Female
-
23990C0-88114-000 Terminating Resistor 120 ohm MaleTerminating Resistor 120 ohm Male
-
24990C0-88110-000 T-ConnectorT-Connector
-
2536660-89L03-000 Adapter for use with DF 9.9B to DF 30AAdapter for use with DF 9.9B to DF 30A
-
2629404-93J11-000 • Clamp (L:65)• Clamp (L:65)
-
2709407-14407-000 • Clamp (L:145)• Clamp (L:145)
-
2836667-96L20-000 Gauge Extension WireGauge Extension Wire
-
2936682-92E00-000 Wire Harness
(L:6500)Wire Harness
(L:6500) -
3036990-87D00-000 Terminal & Sleeve SetTerminal & Sleeve Set
