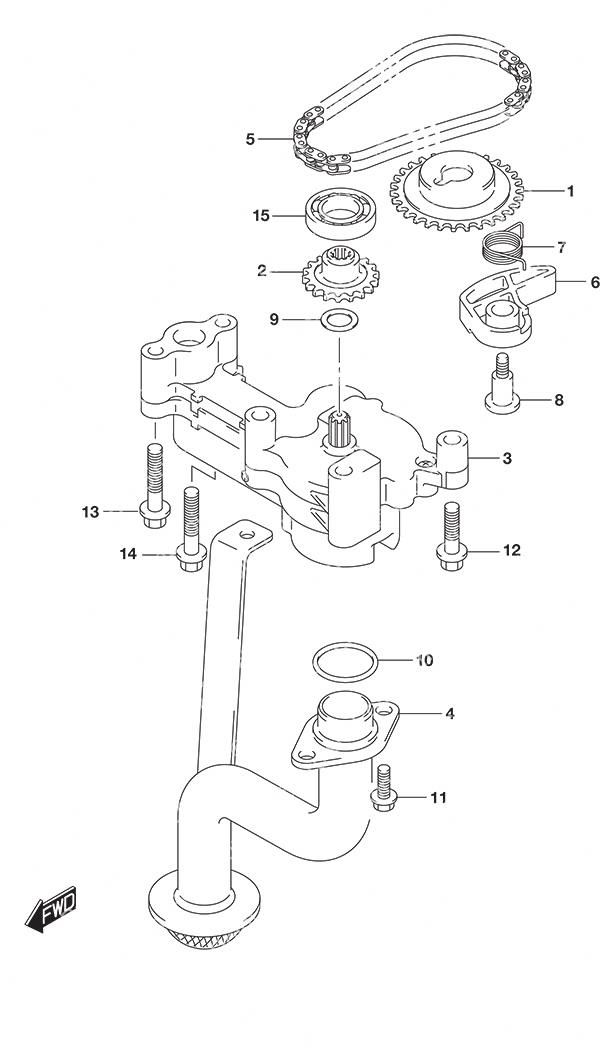

Fig. 175 - Oil Pump для Suzuki DF 300AP - 2019 года выпуска
-
№АртикулНазвание
-
112632-93J11-000 Oil Pump Drive SprocketOil Pump Drive Sprocket
-
216113-93J10-000 Oil Pump Driven SprocketOil Pump Driven Sprocket
-
316400-93J20-000 Oil Pump AssemblyOil Pump Assembly
-
416520-93J00-000 Oil Pump StrainerOil Pump Strainer
-
516760-93J00-000 Oil Pump ChainOil Pump Chain
-
616781-93J00-000 Oil Pump Chain TensionerOil Pump Chain Tensioner
-
716782-93J00-000 Oil Pump Tensioner SpringOil Pump Tensioner Spring
-
816783-93J01-000 Oil Pump Tensioner BoltOil Pump Tensioner Bolt
-
909181-12158-000 Washer (12x20x0.5)Washer (12x20x0.5)
-
1009280-22020-000 O-RingO-Ring
-
1101550-0616A-000 BoltBolt
-
1201550-0845A-000 BoltBolt
-
1301550-0865A-000 BoltBolt
-
1401550-0885A-000 BoltBolt
-
1508110-60020-000 Bearing (15x32x09)Bearing (15x32x09)
