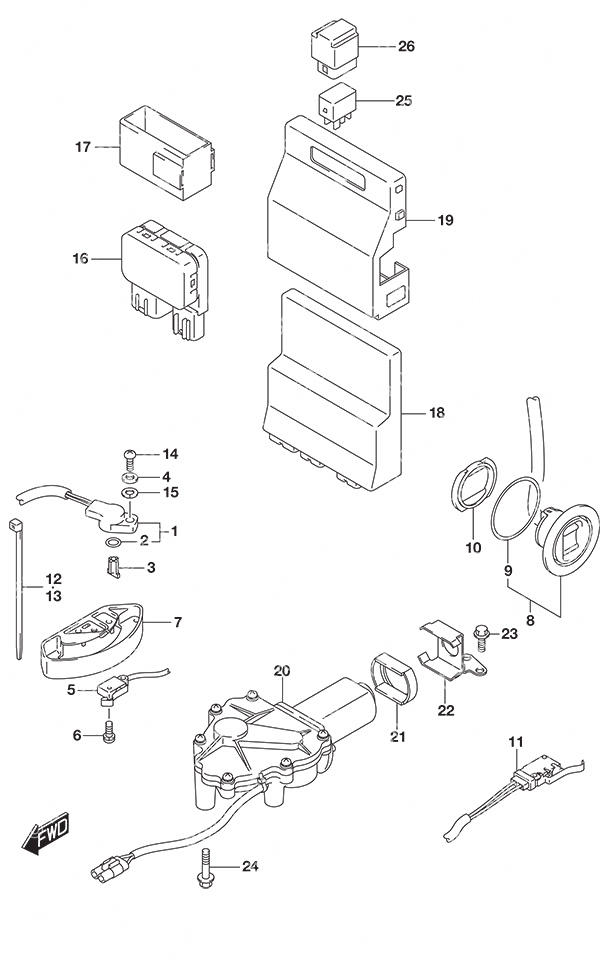

Fig. 326 - PTT Switch/Engine Control Unit для Suzuki DF 175AP - 2020 года выпуска
-
№АртикулНазвание
-
113580-98J03-000 Shift Position Sensor AssemblyShift Position Sensor Assembly
-
213575-40F00-000 • O-Ring• O-Ring
-
337729-96L00-000 Shift Sensor LeverShift Sensor Lever
-
409160-05029-000 Washer (5.5x10x0.8)Washer (5.5x10x0.8)
-
537721-93J00-000 Neutral Switch AssemblyNeutral Switch Assembly
-
609137-04004-000 Screw (4x16)Screw (4x16)
-
737725-93J11-000 Switch Assembly CoverSwitch Assembly Cover
-
837850-92J00-000 PTT Switch AssemblyPTT Switch Assembly
-
937856-92J00-000 • PTT Switch Tape• PTT Switch Tape
-
1037857-92J00-000 PTT Switch BushingPTT Switch Bushing
-
1137722-93J13-000 Tilt Limit Switch AssemblyTilt Limit Switch Assembly
-
1209407-14407-000 Clamp (L:145)Clamp (L:145)
-
1309407-10404-000 Clamp (L:100)Clamp (L:100)
-
1407130-05167-000 BoltBolt
-
1508321-0105A-000 Lock WasherLock Washer
-
1638410-93J21-000 PTT Relay AssemblyPTT Relay Assembly
-
1738415-93J20-000 PTT Relay HolderPTT Relay Holder
-
1833920-96LH0-000 Engine Control UnitEngine Control Unit
-
1933925-98J00-000 ECU CushionECU Cushion
-
2038890-98J12-000 Shift Actuator AssemblyShift Actuator Assembly
-
2138892-98J01-000 Shift Actuator DamperShift Actuator Damper
-
2238895-98J00-000 Shift Actuator BracketShift Actuator Bracket
-
2301550-06167-000 Bolt (6x16)Bolt (6x16)
-
2401550-06307-000 Bolt (6x30)Bolt (6x30)
-
2538860-76F01-000 RelayRelay
-
2638915-90J00-000 Relay HolderRelay Holder
