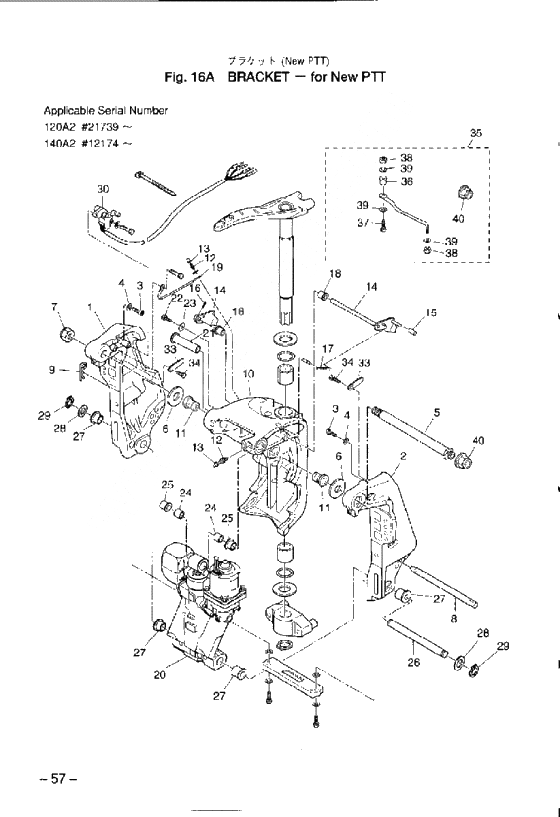

Bracket-for new ptt для Tohatsu M120A2 - 2002 года выпуска
-
№АртикулНазвание
-
13E0S62112-0 Stern bracket rStern bracket r
-
23E0S62113-0 Stern bracket lStern bracket l
-
3910203-1020 BoltBolt
-
53E0-77192-0 Bracket Ass'yBracket Ass'y
-
63E0-62116-0 WasherWasher
-
7346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
83E0-62121-0 Thrust RodThrust Rod
-
3E0-62121-1 Thrust RodThrust Rod
-
93B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
103E0S62313-0 Swivel bracket ass'y
W/TILT STOPPER SPRING PINSwivel bracket ass'y
W/TILT STOPPER SPRING PIN -
113E0-77183-0 Brush - not for saleBrush - not for sale
-
12344-67177-0 МасленкаМасленка
-
13344-67178-0 Cap grease nippleCap grease nipple
-
143E0S62431-0 Tilt stopper assyTilt stopper assy
-
3Y9-62431-1 Tilt stopper assyTilt stopper assy
-
15369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
16951403-3516 New partNew part
-
173E0-62473-0 Spring Tilt StopperSpring Tilt Stopper
-
18353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
193C8-62158-0 Ground WireGround Wire
-
203E0S77150-0 Power trim & tilt ass'yPower trim & tilt ass'y
-
213C8-77071-0 Upper Cylinder PinUpper Cylinder Pin
-
22910103-0612 New partNew part
-
23345-05122-0 New partNew part
-
243C8-77075-0 New partNew part
-
253E0-77076-0 BushingBushing
-
263E0-77101-0 Cylinder pin lowerCylinder pin lower
-
273E0-77103-0 BushingBushing
-
28346-62412-0 WasherWasher
-
346-62412-1 WasherWasher
-
29945103-2200 ClipClip
-
303E0-72574-0 ГидроцилиндрГидроцилиндр
-
33309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
353E0-84905-0 Drag link assyDrag link assy
-
363E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
373B7-84917-0 Bolt 3/8-55Bolt 3/8-55
-
38353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
39353-84916-0 WasherWasher
-
403F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
