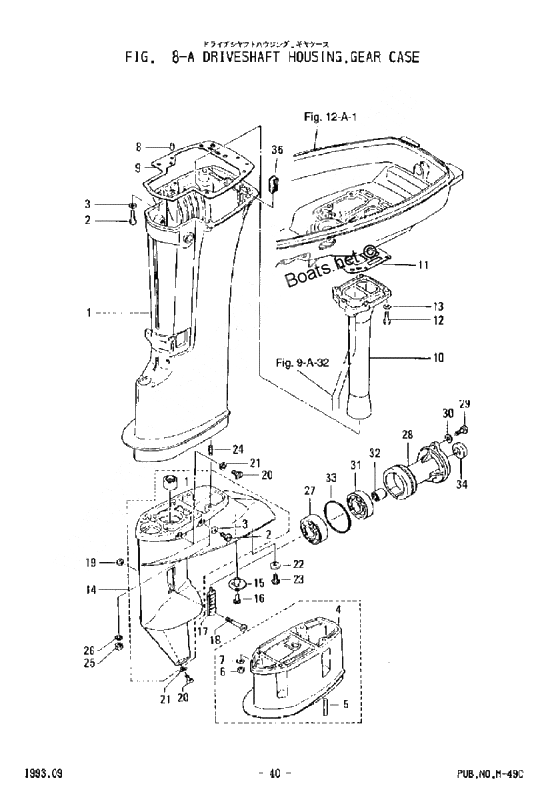

Drivershaft housing, gear case для Tohatsu M15C - 2002 года выпуска
-
№АртикулНазвание
-
00398-60000-0 Gear case ass'y
NS18D,15C,9.9CGear case ass'y
NS18D,15C,9.9C -
00398-61207-0 Grommet idle port
NS18D,15C,9.9CGrommet idle port
NS18D,15C,9.9C -
00345-01111-0 Dowel Pin 6-12
NS18D,15C,9.9CDowel Pin 6-12
NS18D,15C,9.9C -
00338-60218-2 New part
NS18D,15C,9.9CNew part
NS18D,15C,9.9C -
00350-61020-1 Drive shaft housing s
NS18D,15C,9.9CDrive shaft housing s
NS18D,15C,9.9C -
00350-61012-1 Gasket drive shaft housing
NS18D,15C,9.9CGasket drive shaft housing
NS18D,15C,9.9C -
00910103-0616 Bolt
NS18D,15C,9.9CBolt
NS18D,15C,9.9C -
00350-61030-1 Drive shaft housing l
NS18D,15C,9.9CDrive shaft housing l
NS18D,15C,9.9C -
00362-02311-0 Exhaust Pipe
NS18D,15C,9.9CExhaust Pipe
NS18D,15C,9.9C -
009601-0-6205 Подшипник 25x52x15
NS18D,15C,9.9CПодшипник 25x52x15
NS18D,15C,9.9C -
00910-13084-0 Bolt
NS18D,15C,9.9CBolt
NS18D,15C,9.9C -
00362-02312-0 Gasket, Exhaust Pipe
NS18D,15C,9.9CGasket, Exhaust Pipe
NS18D,15C,9.9C -
00362-60211-0 Needle Bearing
NS18D,15C,9.9CNeedle Bearing
NS18D,15C,9.9C -
00334-66233-0 Bracket washer
NS18D,15C,9.9CBracket washer
NS18D,15C,9.9C -
00369-60206-0 Water Strainer
NS18D,15C,9.9CWater Strainer
NS18D,15C,9.9C -
00910114-0625 Bolt
NS18D,15C,9.9CBolt
NS18D,15C,9.9C -
00121-32071-0 O-Ring
NS18D,15C,9.9CO-Ring
NS18D,15C,9.9C -
00915-33082-5 Stud Bolt
NS18D,15C,9.9CStud Bolt
NS18D,15C,9.9C -
00921-83062-0 Screw
NS18D,15C,9.9CScrew
NS18D,15C,9.9C -
00940-13060-0 Washer
NS18D,15C,9.9CWasher
NS18D,15C,9.9C -
00346-65013-0 Oil' seal, 17-30-9
NS18D,15C,9.9COil' seal, 17-30-9
NS18D,15C,9.9C -
00930103-0800 Nut
NS18D,15C,9.9CNut
NS18D,15C,9.9C -
00362-60206-0 Water Strainer
NS18D,15C,9.9CWater Strainer
NS18D,15C,9.9C -
01350-60211-0 Needle Bearing
NS18D,15C,9.9CNeedle Bearing
NS18D,15C,9.9C -
02332-60005-0 Oil plug
NS18D,15C,9.9COil plug
NS18D,15C,9.9C -
03332-60006-0 Gasket (8.1x15.1)
NS18D,15C,9.9CGasket (8.1x15.1)
NS18D,15C,9.9C
