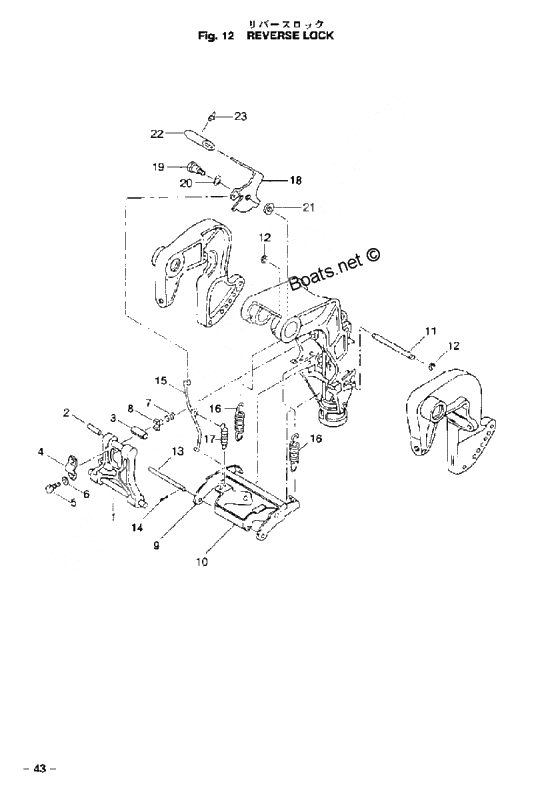

Reverse lock для Tohatsu M15D2 - 2002 года выпуска
-
№АртикулНазвание
-
13G2S62431-0 Tilt Stopper Ass'yTilt Stopper Ass'y
-
2951403-0535 Spring WasherSpring Washer
-
3350-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
4350-62439-0 Set plateSet plate
-
350-62439-1 Set plateSet plate
-
5910114-0818 BoltBolt
-
6941303-0800 Spring WasherSpring Washer
-
73C8-62421-1 Spring Friction PlateSpring Friction Plate
-
8346-62438-0 Set PieceSet Piece
-
93G2-66351-0 Reverse LockReverse Lock
-
103G2-66313-0 Arm reverse lockArm reverse lock
-
113G2-66319-0 Shaft reverse lock aShaft reverse lock a
-
12945303-0600 E-RingE-Ring
-
133G2-66321-0 Rod reverse lock aRod reverse lock a
-
14951503-0212 Split PinSplit Pin
-
153G2-66312-0 Link reverse lock aLink reverse lock a
-
163G2-66331-0 Spring, reverse lockSpring, reverse lock
-
17350-66315-0 Spring reverse lockSpring reverse lock
-
183G2-66311-0 Lever reverse lockLever reverse lock
-
193M2-05254-0 Shaft, reverse lock leverShaft, reverse lock lever
-
20941403-0800 WasherWasher
-
213C8-66308-0 New partNew part
-
22346-66333-0 GripGrip
-
23346-66334-0 StopperStopper
