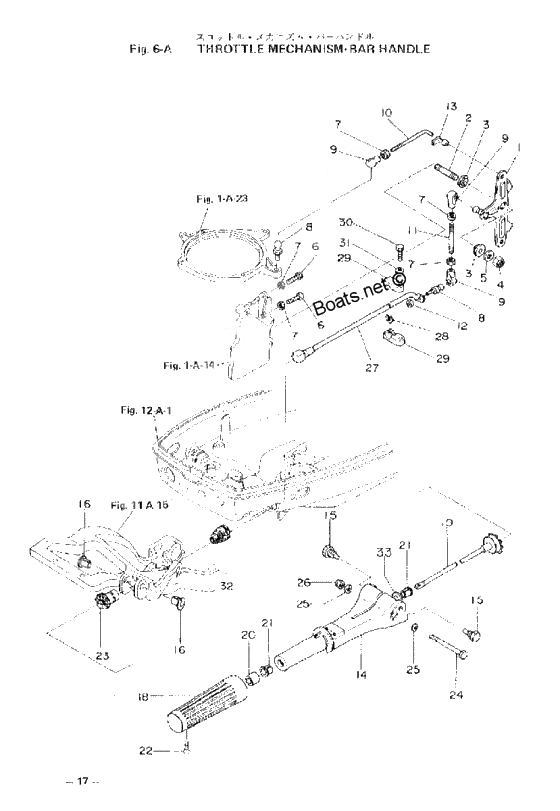

Throttle mechanism bar handle для Tohatsu M18C2 - 2002 года выпуска
-
№АртикулНазвание
-
1350-63711-0 Advancer ArmAdvancer Arm
-
2915-21082-3 Stud BoltStud Bolt
-
3345-63713-0 BushingBushing
-
4930406-0800 Nylon NutNylon Nut
-
5334-66233-0 Bracket washer
8.1-16-1.5mmBracket washer
8.1-16-1.5mm -
8346-05228-0 New partNew part
-
9345-05229-0 Cap, ball jointCap, ball joint
-
10350-63715-0 Advancer link rodAdvancer link rod
-
11350-63717-0 Handle link rodHandle link rod
-
12346-63201-0 Bolt, handle aBolt, handle a
-
13345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
-
14350-63011-0 Steering handleSteering handle
-
16345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
18350-63012-0 GripGrip
-
20345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
21350-63046-0 BushingBushing
-
23350-63064-0 Universal pinionUniversal pinion
-
25940-13060-0 WasherWasher
-
26930403-0600 Nylon NutNylon Nut
-
27350-63061-1 Throttle shaft bThrottle shaft b
-
29350-63063-0 Supporter, throttle shaftSupporter, throttle shaft
-
32345-66226-0 Grommet, 17-3Grommet, 17-3
-
33332-61315-0 Washer
10.5-18-1.5mmWasher
10.5-18-1.5mm
