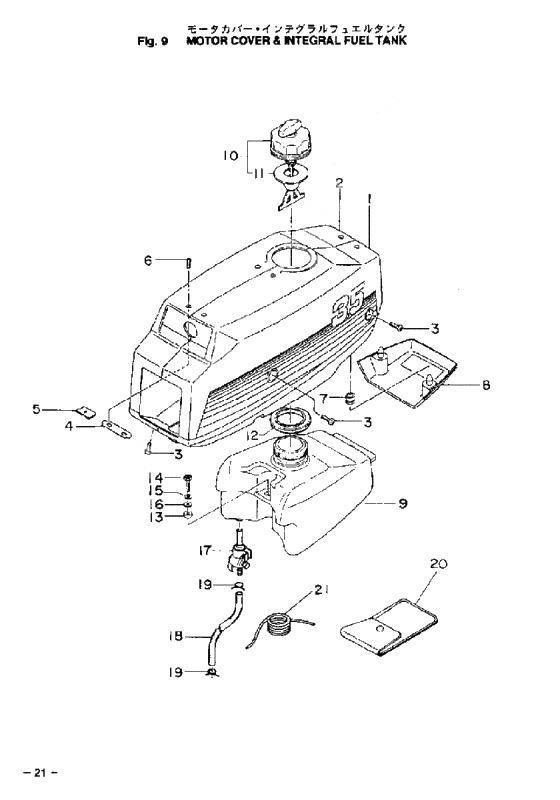

Motor cover & integral fuel tank для Tohatsu M2.5A - 2002 года выпуска
-
№АртикулНазвание
-
1314S67004-5 Motor cover left
UniqueMotor cover left
Unique -
1N14-67004-2 Motor cover, left
Gray, Not Interchangeable, 81965Motor cover, left
Gray, Not Interchangeable, 81965 -
2314S67003-5 Motor cover, right (w/decal)
UniqueMotor cover, right (w/decal)
Unique -
3910103-0612 New partNew part
-
3921503-0612 Stud BoltStud Bolt
-
4309-67006-0 Set plate motor coverSet plate motor cover
-
5309-67007-0 Nut motor cover set plateNut motor cover set plate
-
6921603-0510 Stud BoltStud Bolt
-
7307-67005-0 Grommet plug cap coverGrommet plug cap cover
-
8309-06927-0 Plug cap cover
Blue, -81965Plug cap cover
Blue, -81965 -
8309S06927-1 Cover plug cap
SGCover plug cap
SG -
9309-70010-0 Fuel tankFuel tank
-
10309-70020-1 Fuel tank capFuel tank cap
-
11309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
11309-70021-1 Gasket, Fuel Tank Cap
-63870Gasket, Fuel Tank Cap
-63870 -
11309-70021-2 Gasket, Fuel Tank Cap
Interchangeable with Older and Newer, Parts, 63871-Gasket, Fuel Tank Cap
Interchangeable with Older and Newer, Parts, 63871- -
12309-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
13309-70015-0 Spacer 7.2-10-6Spacer 7.2-10-6
-
14910421-0620 BoltBolt
-
14910-41062-0 Bolt, fuel tankBolt, fuel tank
-
15941322-0600 Spring WasherSpring Washer
-
15941-32060-0 Spring WasherSpring Washer
-
16309-70016-0 WasherWasher
-
17309-70011-0 New partNew part
-
189810-5-0250 Fuel pipe
D5-D10-250MMFuel pipe
D5-D10-250MM -
19338-02215-0 ClipClip
-
20309-72100-0 Tool assyTool assy
-
21312-72201-0 Safety RopeSafety Rope
-
21309-64122-1 Shear pin?309-64122-0Shear pin?309-64122-0
-
22951503-0435 New partNew part
-
23309-72100-0 Tool assyTool assy
-
24NC2-87801-0 Mark set
Gray, Not Interchangeable, 81966-Mark set
Gray, Not Interchangeable, 81966- -
243C2-87801-0 Mark set
Blue, -81965Mark set
Blue, -81965 -
1314S67004-5 Motor cover left
UniqueMotor cover left
Unique -
1N14-67004-2 Motor cover, left
Gray, Not Interchangeable, 81965Motor cover, left
Gray, Not Interchangeable, 81965 -
2314S67003-5 Motor cover, right (w/decal)
UniqueMotor cover, right (w/decal)
Unique -
3910103-0612 New partNew part
-
3921503-0612 Stud BoltStud Bolt
-
4309-67006-0 Set plate motor coverSet plate motor cover
-
5309-67007-0 Nut motor cover set plateNut motor cover set plate
-
6921603-0510 Stud BoltStud Bolt
-
7307-67005-0 Grommet plug cap coverGrommet plug cap cover
-
8309-06927-0 Plug cap cover
Blue, -81965Plug cap cover
Blue, -81965 -
8309S06927-1 Cover plug cap
SGCover plug cap
SG -
9309-70010-0 Fuel tankFuel tank
-
10309-70020-1 Fuel tank capFuel tank cap
-
11309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
11309-70021-1 Gasket, Fuel Tank Cap
-63870Gasket, Fuel Tank Cap
-63870 -
11309-70021-2 Gasket, Fuel Tank Cap
Interchangeable with Older and Newer, Parts, 63871-Gasket, Fuel Tank Cap
Interchangeable with Older and Newer, Parts, 63871- -
12309-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
13309-70015-0 Spacer 7.2-10-6Spacer 7.2-10-6
-
14910421-0620 BoltBolt
-
14910-41062-0 Bolt, fuel tankBolt, fuel tank
-
15941322-0600 Spring WasherSpring Washer
-
15941-32060-0 Spring WasherSpring Washer
-
16309-70016-0 WasherWasher
-
17309-70011-0 New partNew part
-
189810-5-0250 Fuel pipe
D5-D10-250MMFuel pipe
D5-D10-250MM -
19338-02215-0 ClipClip
-
20309-72100-0 Tool assyTool assy
-
21312-72201-0 Safety RopeSafety Rope
-
21309-64122-1 Shear pin?309-64122-0Shear pin?309-64122-0
-
22951503-0435 New partNew part
-
23309-72100-0 Tool assyTool assy
-
24NC2-87801-0 Mark set
Gray, Not Interchangeable, 81966-Mark set
Gray, Not Interchangeable, 81966- -
243C2-87801-0 Mark set
Blue, -81965Mark set
Blue, -81965
