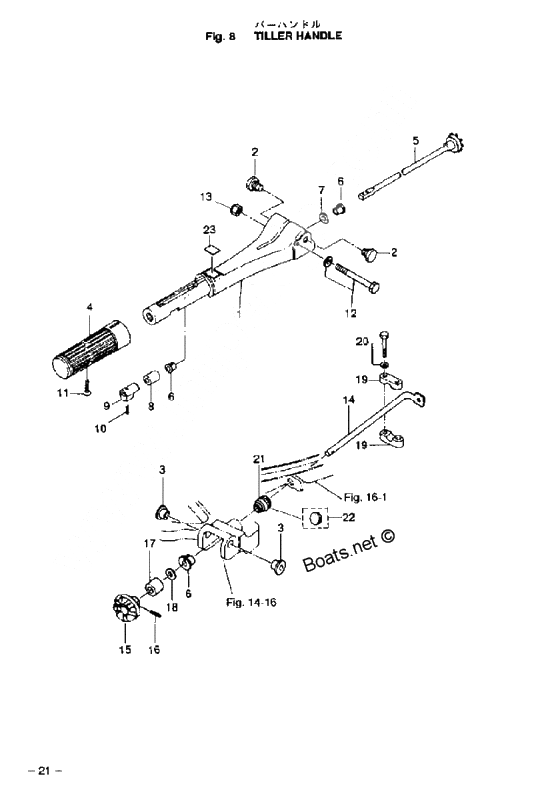

Tiller handle для Tohatsu M25C3 - 2002 года выпуска
-
№АртикулНазвание
-
1398S63011-0 Handle aHandle a
-
2346-63201-0 Bolt, handle aBolt, handle a
-
3345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
4398-63012-0 GripGrip
-
5398-63041-0 Ось дросселяОсь дросселя
-
6350-63046-0 BushingBushing
-
7941403-1000 WasherWasher
-
8345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
9398-63053-0 Spacer Throttle ShaftSpacer Throttle Shaft
-
10951403-0310 New partNew part
-
11921803-0525 Stud BoltStud Bolt
-
13930403-0600 Nylon NutNylon Nut
-
14346-63061-2 Throttle shaft bThrottle shaft b
-
15346-63064-0 Universal pinionUniversal pinion
-
16951403-0414 Spring WasherSpring Washer
-
17346-63066-1 Collar, 15.9-17.1-9Collar, 15.9-17.1-9
-
18940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
19345-63063-0 Holder handle shaft bHolder handle shaft b
-
21345-66226-0 Grommet, 17-3Grommet, 17-3
-
22345-67117-0 New part
For Remote ControlNew part
For Remote Control -
23369-72019-0 Label, throttleLabel, throttle
