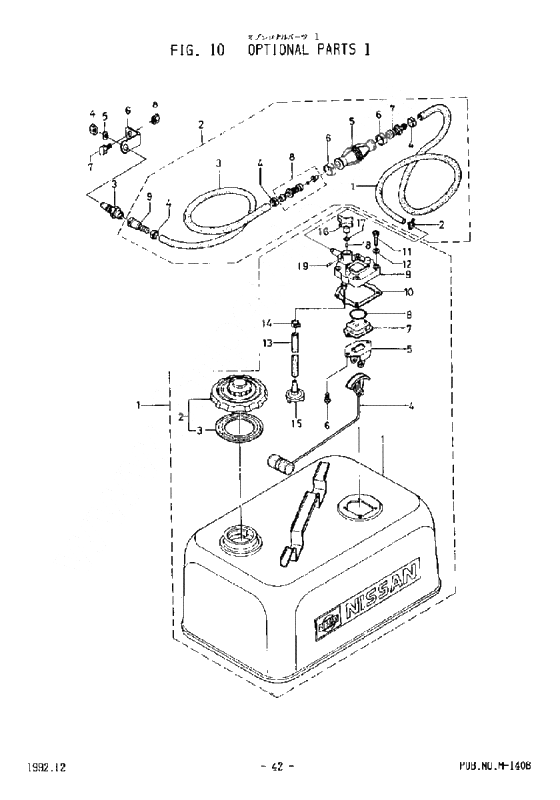

Fuel tank (remote) для Tohatsu M3.5A - 2002 года выпуска
-
№АртикулНазвание
-
1369-70056-0 Fuel tank complete
Not for SaleFuel tank complete
Not for Sale -
19812-7-1000 Fuel pipe
D7-D12-1000MFuel pipe
D7-D12-1000M -
2334-70020-0 Fuel tank cap ass'yFuel tank cap ass'y
-
2345-70200-0 Primer bulb assyPrimer bulb assy
-
2332-70204-0 ClipClip
-
3334-70021-0 Gasket fuel tank capGasket fuel tank cap
-
3345-70260-0 Fuel connector bFuel connector b
-
39812-7-1300 Fuel pipe b
D7-D12-1300MMFuel pipe b
D7-D12-1300MM -
4337-70120-0 Fuel gauge (with float)Fuel gauge (with float)
-
4332-70261-0 Nut Fuel Connector BNut Fuel Connector B
-
4332-70201-0 ClampClamp
-
5941303-0500 Spring WasherSpring Washer
-
5334-70121-0 Bracket fuel gaugeBracket fuel gauge
-
6332-70217-0 Clamp, primer bulbClamp, primer bulb
-
6921-51051-0 Screw, throttle leverScrew, throttle lever
-
7910103-0616 BoltBolt
-
7345-70212-0 Connector a primer bulbConnector a primer bulb
-
8334-70123-1 O-RingO-Ring
-
8930103-0600 NutNut
-
8345-70213-0 Connector b primer bulbConnector b primer bulb
-
9345-70127-1 Housing fuel gaugeHousing fuel gauge
-
9345-70250-0 Fuel connector aFuel connector a
-
11922-23052-0 ScrewScrew
-
12334-70128-0 Gasket 5.1-12-0.8Gasket 5.1-12-0.8
-
139812-7-0156 Fuel suction pipe
D7-D12-156MMFuel suction pipe
D7-D12-156MM -
14345-70114-0 ClipClip
-
18332-70214-0 Nylon ball (1/4)"Nylon ball (1/4)"
-
19951-43022-0 Spring PinSpring Pin
