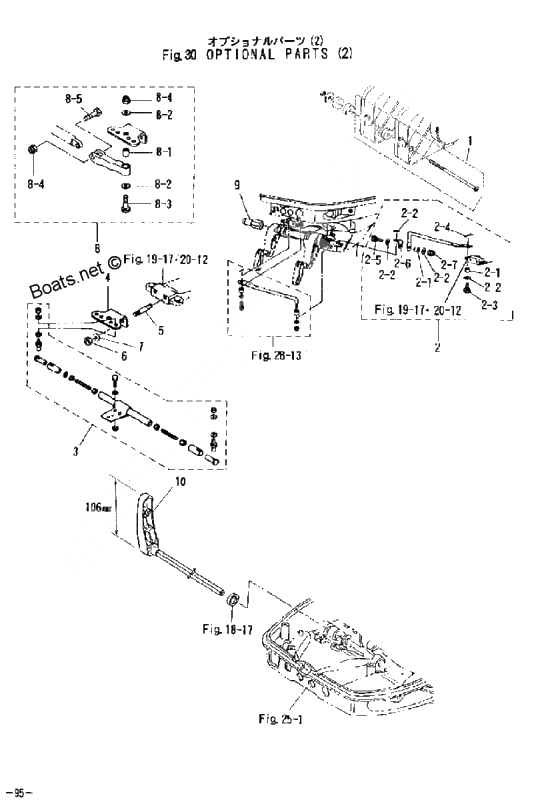

Throttle linkage для Tohatsu M40D2 - 2002 года выпуска
-
№АртикулНазвание
-
13A3-81301-0 Twin Remote Control Box KitTwin Remote Control Box Kit
-
23C8-84900-1 Tie-bar kit dTie-bar kit d
-
2-13C8-84914-1 Collar 9.6-13-6.5Collar 9.6-13-6.5
-
2-2353-84916-0 WasherWasher
-
2-33C8-84917-0 Bolt 3/8-19Bolt 3/8-19
-
2-4951503-0215 Split PinSplit Pin
-
2-53C8-84937-0 Bolt 3/8-30Bolt 3/8-30
-
2-63C8-84936-0 Plate steering rodPlate steering rod
-
2-7353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
33A3-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
3B7-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
43C8-84830-0 Steering Hook PlateSteering Hook Plate
-
5915203-0816 Stud BoltStud Bolt
-
6930403-0800 Nylon NutNylon Nut
-
7940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
83C8S84960-0 Crevice Ass'yCrevice Ass'y
-
8-13C8-84962-0 Collar 9.6-13-20.5Collar 9.6-13-20.5
-
8-33C8-84963-0 Bolt 3/8-43Bolt 3/8-43
-
8-53C8-84964-0 Bolt 3/8-35Bolt 3/8-35
-
9353-84904-0 Spacer Drag LinkSpacer Drag Link
-
103C8-66110-0 Shift Lever
L=106MMShift Lever
L=106MM -
3E3-66110-0 Shift LeverShift Lever
