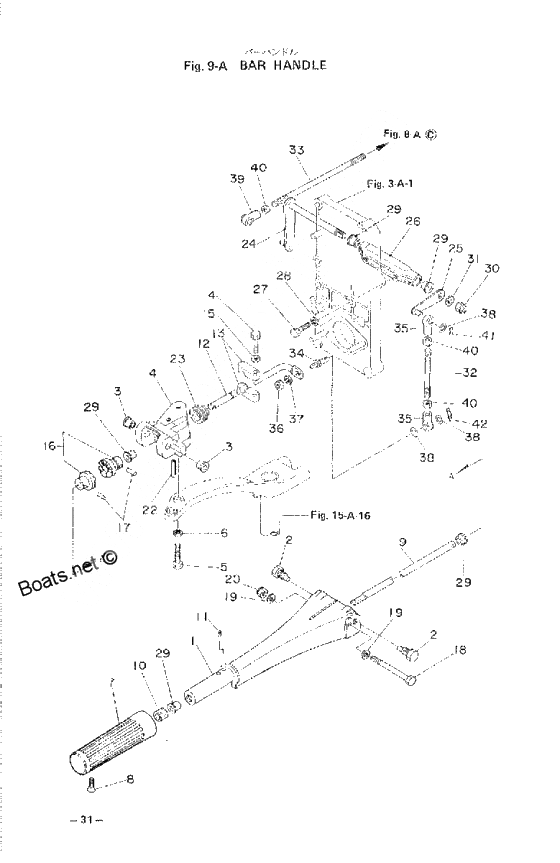

Bar handle для Tohatsu M50C - 2002 года выпуска
-
№АртикулНазвание
-
1353-63011-1 Handle aHandle a
-
2353-63201-1 Bolt a handleBolt a handle
-
3353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
4353-63051-1 Handle bHandle b
-
5353-61113-0 Bolt, handle bBolt, handle b
-
6941303-0800 Spring WasherSpring Washer
-
7350-63012-0 GripGrip
-
8920-83052-0 ScrewScrew
-
9353-63041-1 Ось дросселяОсь дросселя
-
10345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
11353-63029-0 Screw handle grip stopScrew handle grip stop
-
12353-63061-1 Throttle shaft bThrottle shaft b
-
13350-63063-0 Supporter, throttle shaftSupporter, throttle shaft
-
15940-13060-0 WasherWasher
-
16345-63064-0 Universal pinionUniversal pinion
-
17951403-0316 Spring Washer
3-16mmSpring Washer
3-16mm -
18353-63203-0 Bolt handle frictionBolt handle friction
-
20930403-0600 Nylon NutNylon Nut
-
23353-63067-0 Grommet throttle shaft bGrommet throttle shaft b
-
24353-63071-0 Throttle shaft cThrottle shaft c
-
25353-63072-1 Lever throttle shaft cLever throttle shaft c
-
26353-63073-0 Bracket, throttle shaft aBracket, throttle shaft a
-
27910114-0625 BoltBolt
-
28941303-0600 New partNew part
-
29350-63046-0 BushingBushing
-
30930406-0800 Nylon NutNylon Nut
-
31940-13080-0 WasherWasher
-
32353-63717-0 Rod a handle link
5-66mmRod a handle link
5-66mm -
33353-63719-0 Rod b handle link
5-91mmRod b handle link
5-91mm -
34353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
35346-05234-0 New partNew part
-
38353-83719-0 WasherWasher
-
39345-05229-0 Cap, ball jointCap, ball joint
-
41951-53021-0 Split PinSplit Pin
-
42951603-0800 R-PinR-Pin
