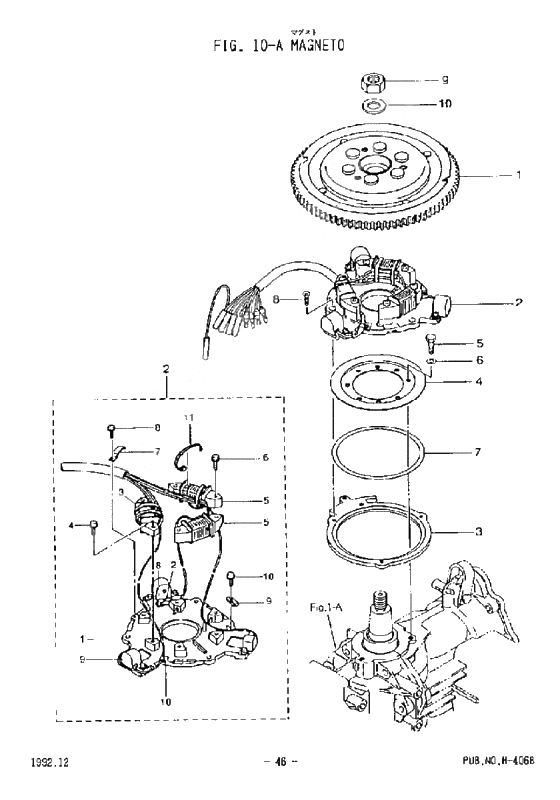

Magneto для Tohatsu M50D - 2002 года выпуска
-
№АртикулНазвание
-
00353-00132-0 Nut 18P1.5
NS40D,NS50DNut 18P1.5
NS40D,NS50D -
003B7-63723-0 Комплект колец
NS40D,NS50DКомплект колец
NS40D,NS50D -
00353-00133-0 Washer
NS40D,NS50DWasher
NS40D,NS50D -
00346-63722-2 Guide Plate
NS40D,NS50DGuide Plate
NS40D,NS50D -
00910103-0616 Bolt
NS40D,NS50DBolt
NS40D,NS50D -
00941-32060-0 Spring Washer
NS40D,NS50DSpring Washer
NS40D,NS50D -
003C8-63724-0 Shim, 110-122
NS40D,NS50D AR T=0.15,0.2,0.25Shim, 110-122
NS40D,NS50D AR T=0.15,0.2,0.25 -
003C8-06101-0 Flywheel
NS40D,NS50DFlywheel
NS40D,NS50D -
00921603-0510 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D -
023B7-06131-0 Holder, pulser
NS40D,NS50DHolder, pulser
NS40D,NS50D -
033C8-06120-0 Exciter coil
NS40D,NS50DExciter coil
NS40D,NS50D -
04921521-6630 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D -
073B7-06135-0 Holder, magneto cord
NS40D,NS50DHolder, magneto cord
NS40D,NS50D -
093B7-06132-0 Clamp, pulser
NS40D,NS50DClamp, pulser
NS40D,NS50D -
10922521-0406 Stud Bolt
NS40D,NS50DStud Bolt
NS40D,NS50D -
113B7-06133-0 Band, lead wire
NS40D,NS50DBand, lead wire
NS40D,NS50D
