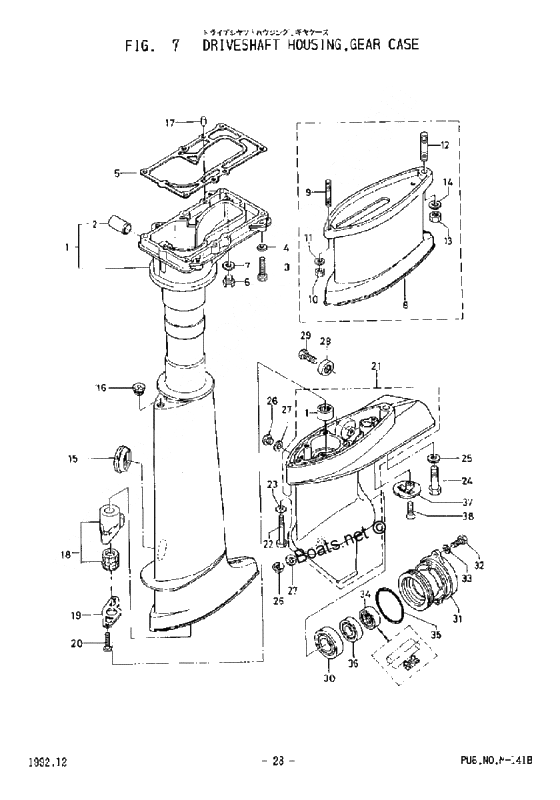

Drive shaft housing, gear case для Tohatsu M5B - 2002 года выпуска
-
№АртикулНазвание
-
1369-61020-0 Drive shaft housing s
(w/Bushing), -57900Drive shaft housing s
(w/Bushing), -57900 -
1369-60211-0 Needle BearingNeedle Bearing
-
1369-61020-1 Drive shaft housing s
Blue, Interchangeable with Older and Newer Parts, 57901-79758Drive shaft housing s
Blue, Interchangeable with Older and Newer Parts, 57901-79758 -
1369S61020-2 Drive shaft housing s
Gray, Not Interchangeable, 79759-Drive shaft housing s
Gray, Not Interchangeable, 79759- -
1369-61030-0 Drive shaft housing l
(w/Bushing), -57900Drive shaft housing l
(w/Bushing), -57900 -
1369-61030-1 Drive shaft housing l
Blue, Interchangeable with Older and Newer Parts, 57901-79758Drive shaft housing l
Blue, Interchangeable with Older and Newer Parts, 57901-79758 -
1369S61030-2 Drive shaft housing l
Gray, Not Interchangeable, 79759-Drive shaft housing l
Gray, Not Interchangeable, 79759- -
4940-13060-0 WasherWasher
-
5369-61012-0 New partNew part
-
6910-63080-8 Water PlugWater Plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
8369-61110-0 Extension housing xl
Blue, -79758Extension housing xl
Blue, -79758 -
8369S61110-0 Extension housing ul
Gray, Not Interchangeable, 79759-Extension housing ul
Gray, Not Interchangeable, 79759- -
9915-33062-0 Stud bolt, frontStud bolt, front
-
10930103-0600 NutNut
-
12915-23082-2 Stud bolt, rearStud bolt, rear
-
13930103-0800 NutNut
-
14940-13080-0 WasherWasher
-
15369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
16369-66043-0 Grommet, cam rodGrommet, cam rod
-
17345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
18369-64331-0 Bushing, drive shaft
for Transom L, XLBushing, drive shaft
for Transom L, XL -
19369-64332-0 Stopper drive shaft bushingStopper drive shaft bushing
-
20921503-0525 Stud Bolt
for Transom L, XLStud Bolt
for Transom L, XL -
20921503-5510 Stud Bolt
for Transom SStud Bolt
for Transom S -
21369S60000-2 Gear case ass'y
Gray, Not Interchangeable, 79759-Gear case ass'y
Gray, Not Interchangeable, 79759- -
21369-60000-0 Gear case assy
Blue, -79758Gear case assy
Blue, -79758 -
22916-13064-5 Bolt, frontBolt, front
-
24916-13083-5 Bolt, rearBolt, rear
-
26332-60005-0 Oil plugOil plug
-
27332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
28369-60218-0 AnodeAnode
-
29910103-0616 BoltBolt
-
309601-0-6004 Ball Bearing
(#6004)Ball Bearing
(#6004) -
31369-60101-0 Housing, Propeller Shaft
Blue, -79758Housing, Propeller Shaft
Blue, -79758 -
31369S60101-0 Housing, Propeller Shaft
Gray, Not Interchangeable, 79759-Housing, Propeller Shaft
Gray, Not Interchangeable, 79759- -
34369-60111-0 Oil Seal
D15-D28-10MMOil Seal
D15-D28-10MM -
35345-65015-0 O-Ring
D3.2-D47O-Ring
D3.2-D47 -
369601-0-6002 Ball Bearing
(#6002)Ball Bearing
(#6002) -
37369-60206-0 Water StrainerWater Strainer
-
38921-83062-0 ScrewScrew
