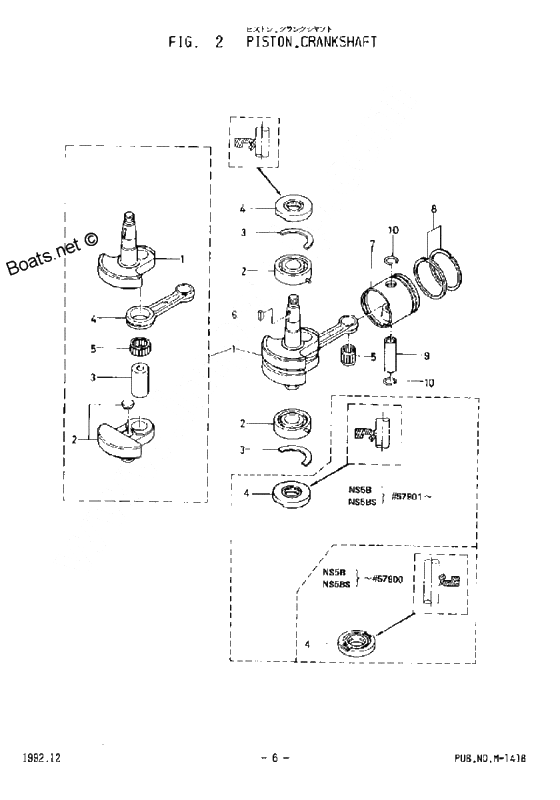

Piston & crank shaft для Tohatsu M5BS - 2002 года выпуска
-
№АртикулНазвание
-
1369-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
1369-00031-0 Вал коленчатыйВал коленчатый
-
29603-3-6204 Ball Bearing
#6204E2C3Ball Bearing
#6204E2C3 -
3369-00115-0 Retainer ball bearingRetainer ball bearing
-
3369-00061-0 New partNew part
-
4301-00122-0 Oil seal, crankshaft
D20-D47-8MMOil seal, crankshaft
D20-D47-8MM -
4369-00040-0 New partNew part
-
5350-00042-0 New partNew part
-
5369-00043-0 New partNew part
-
6338-00131-0 Magneto KeyMagneto Key
-
7369-00001-0 Piston (std)Piston (std)
-
7369-00004-0 New partNew part
-
8351-00011-0 Поршневые кольцаПоршневые кольца
-
8351-00014-0 New partNew part
-
9369-00021-0 New partNew part
-
10350-00024-0 ClipClip
