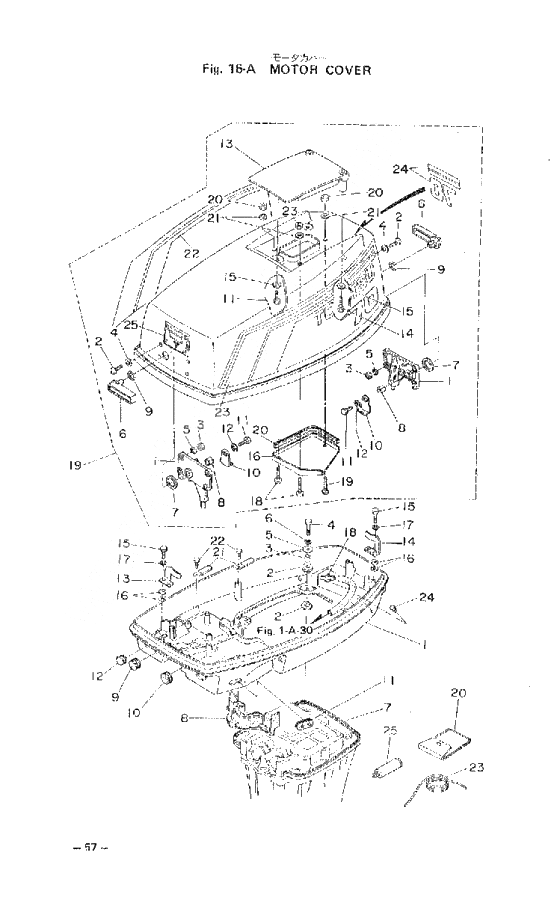

Motor cover для Tohatsu M70A2 - 2002 года выпуска
-
№АртикулНазвание
-
00332-72201-0 Safety Rope
NS50C,NS60A,NS70A2 D6-1000MMSafety Rope
NS50C,NS60A,NS70A2 D6-1000MM -
00353-67162-0 Grommet, Bater Cord
NS50C,NS60A,NS70A2Grommet, Bater Cord
NS50C,NS60A,NS70A2 -
00346-67115-0 Washer
NS50C,NS60A,NS70A2 D6.5-D21-1MMWasher
NS50C,NS60A,NS70A2 D6.5-D21-1MM -
00392-67520-0 Motor cover upper ass'y
NS60AMotor cover upper ass'y
NS60A -
00353-67100-2 Motor cover lower
NS50C,NS60A,NS70A2Motor cover lower
NS50C,NS60A,NS70A2 -
00338-67179-0 Drain plug engine base
NS50C,NS60A,NS70A2Drain plug engine base
NS50C,NS60A,NS70A2 -
003A3-67162-0 Grommet battery cord
NS50C,NS60A,NS70A2Grommet battery cord
NS50C,NS60A,NS70A2 -
00941303-0600 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00391-67520-0 Motor cover upper ass'y
NS50CMotor cover upper ass'y
NS50C -
00353-67100-3 Mount cover lower
NS50C,NS60A,NS70A2Mount cover lower
NS50C,NS60A,NS70A2 -
00336-60007-0 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00345-67117-0 New part
NS50C,NS60A,NS70A2 (FOR P TYPE)New part
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00353-67116-0 Seal Rubber, Lower Cover
NS50C,NS60A,NS70A2Seal Rubber, Lower Cover
NS50C,NS60A,NS70A2 -
00353-67100-4 Motor cover lower
NS50C,NS60A,NS70A2Motor cover lower
NS50C,NS60A,NS70A2 -
00353-67513-0 Cover stay(rear)
NS50C,NS60A,NS70A2Cover stay(rear)
NS50C,NS60A,NS70A2 -
00353-72100-0 TOOL ASS'Y
NS50C,NS60A,NS70A2TOOL ASS'Y
NS50C,NS60A,NS70A2 -
00353-67116-1 Seal Rubber, Lower Cover
NS50C,NS60A,NS70A2Seal Rubber, Lower Cover
NS50C,NS60A,NS70A2 -
00353-67100-5 Motor cover lower
NS50C,NS60A,NS70A2Motor cover lower
NS50C,NS60A,NS70A2 -
00940-13060-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
00309-06972-0 Clamp,6.5-47.5P
NS60A,NS70A2 F TYPEClamp,6.5-47.5P
NS60A,NS70A2 F TYPE -
00353-67166-0 Grommet c lower cover
NS50C,NS60A,NS70A2Grommet c lower cover
NS50C,NS60A,NS70A2 -
00346-67113-0 Mount Rubber
NS50C,NS60A,NS70A2Mount Rubber
NS50C,NS60A,NS70A2 -
00353-01138-0 Water Nipple
NS50C,NS60A,NS70A2Water Nipple
NS50C,NS60A,NS70A2 -
00910121-0612 Bolt
NS60A,NS70A2 F TYPEBolt
NS60A,NS70A2 F TYPE -
00345-67161-0 Grommet 22-3
NS50C,NS60A,NS70A2 (FOR P TYPE)Grommet 22-3
NS50C,NS60A,NS70A2 (FOR P TYPE) -
00346-67114-0 Spacer 6.2-9-15.7
NS50C,NS60A,NS70A2Spacer 6.2-9-15.7
NS50C,NS60A,NS70A2 -
003B0-67520-0 Motor cover upper ass'yMotor cover upper ass'y
-
1353-67100-2 Motor cover lowerMotor cover lower
-
02921703-5520 Stud Bolt
NS50C,NS60A,NS70A2Stud Bolt
NS50C,NS60A,NS70A2 -
2346-67113-0 Mount RubberMount Rubber
-
03930103-0500 Nut
NS50C,NS60A,NS70A2Nut
NS50C,NS60A,NS70A2 -
3346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
04940-13050-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
05941303-0500 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
5346-67115-0 WasherWasher
-
06353-67141-0 Hook lever
NS50C,NS60A,NS70A2Hook lever
NS50C,NS60A,NS70A2 -
6941303-0600 New partNew part
-
07353-67147-1 Seal ring
NS50C,NS60A,NS70A2Seal ring
NS50C,NS60A,NS70A2 -
7353-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
08353-67105-0 Bushing
NS50C,NS60A,NS70A2Bushing
NS50C,NS60A,NS70A2 -
8353-67164-0 Grommet a, lower coverGrommet a, lower cover
-
09338-62435-0 O-Ring
NS50C,NS60A,NS70A2O-Ring
NS50C,NS60A,NS70A2 -
9353-67166-0 Grommet c lower coverGrommet c lower cover
-
10345-67161-0 Grommet 22-3Grommet 22-3
-
10353-67142-0 Cover Hook
NS50C,NS60A,NS70A2Cover Hook
NS50C,NS60A,NS70A2 -
10353-67142-1 Cover Hook
NS50C,NS60A,NS70A2Cover Hook
NS50C,NS60A,NS70A2 -
11910103-0616 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
11353-67162-0 Grommet, Bater CordGrommet, Bater Cord
-
12345-67117-0 New part
(For P Type)New part
(For P Type) -
13353-67521-1 Tilt handle
NS50C,NS60A,NS70A2Tilt handle
NS50C,NS60A,NS70A2 -
13353-67512-0 Cover stay(front)Cover stay(front)
-
14353-67513-0 Cover stay(rear)Cover stay(rear)
-
15332-66308-0 Washer, fuel tank
NS50C,NS60A,NS70A2Washer, fuel tank
NS50C,NS60A,NS70A2 -
16940-13060-0 WasherWasher
-
16353-67523-2 Air guide plate
NS50C,NS60A,NS70A2Air guide plate
NS50C,NS60A,NS70A2 -
18353-01138-0 Water NippleWater Nipple
-
18921-53063-0 Screw
NS50C,NS60A,NS70A2Screw
NS50C,NS60A,NS70A2 -
19389-67520-0 Motor cover upper assemblyMotor cover upper assembly
-
19921503-0620 Stud Bolt
NS50C,NS60A,NS70A2Stud Bolt
NS50C,NS60A,NS70A2 -
19-1353-67517-0 Locating bracketLocating bracket
-
19-10353-67142-0 Cover HookCover Hook
-
19-11910103-0616 BoltBolt
-
19-13353-67521-1 Tilt handleTilt handle
-
19-15332-66308-0 Washer, fuel tank
6.5-16-1.5mmWasher, fuel tank
6.5-16-1.5mm -
19-16353-67523-2 Air guide plateAir guide plate
-
19-17353-67524-0 Seal rubber, guide plateSeal rubber, guide plate
-
19-18921-53063-0 ScrewScrew
-
19-19921503-0620 Stud BoltStud Bolt
-
19-2921703-5520 Stud BoltStud Bolt
-
19-22360-67542-3 Side mark rSide mark r
-
19-23360-67543-3 Side mark lSide mark l
-
19-24360-67536-3 Rear markRear mark
-
19-253A3-67531-0 Front markFront mark
-
19-3930103-0500 NutNut
-
19-4940-13050-0 WasherWasher
-
19-5941-32050-0 Spring WasherSpring Washer
-
19-6353-67141-0 Hook leverHook lever
-
19-7353-67147-1 Seal ringSeal ring
-
19-8353-67105-0 BushingBushing
-
19-9338-62435-0 O-RingO-Ring
-
20353-72100-0 TOOL ASS'YTOOL ASS'Y
-
20930103-0600 Nut
NS50C,NS60A,NS70A2Nut
NS50C,NS60A,NS70A2 -
21309-06972-0 Clamp,6.5-47.5P
(1) F TypeClamp,6.5-47.5P
(1) F Type -
22392-87801-0 Mark set
NS50CMark set
NS50C -
22391-87801-0 Mark set
NS60AMark set
NS60A -
22910121-0612 Bolt
(1) F TypeBolt
(1) F Type -
23332-72201-0 Safety Rope
6-1000mmSafety Rope
6-1000mm -
24338-67179-0 Drain plug engine baseDrain plug engine base
-
25336-60007-0 New partNew part
