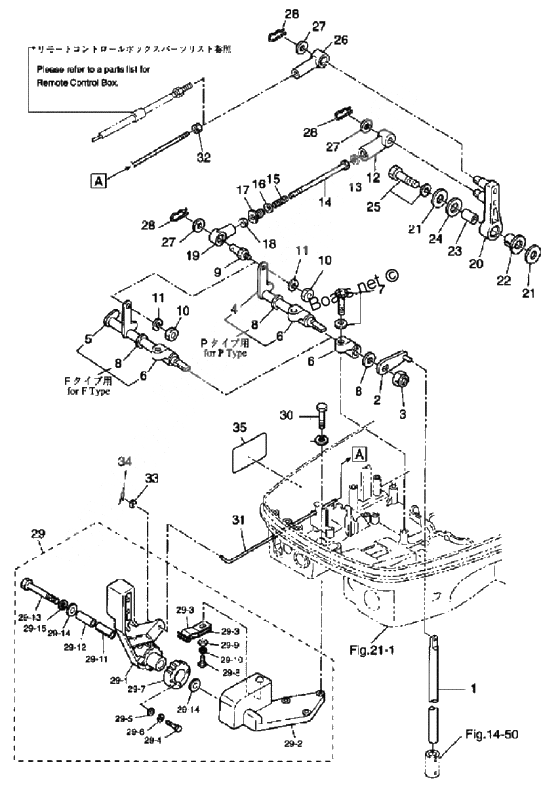

Shift для Tohatsu M80A - 2002 года выпуска
-
№АртикулНазвание
-
1353-66215-1 New part
80A #11039-, 90A #18083-New part
80A #11039-, 90A #18083- -
2353-66110-0 Shift Rod LeverShift Rod Lever
-
3930403-1000 Nylon NutNylon Nut
-
43B7-66225-0 Shift lever shaft(for p type)
for P TypeShift lever shaft(for p type)
for P Type -
53B7-66224-0 Shift lever shaft(for f type)
for F TypeShift lever shaft(for f type)
for F Type -
6353-66145-1 Holder shift lever shaftHolder shift lever shaft
-
7910103-5825 BoltBolt
-
8332-61315-0 WasherWasher
-
9353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
10930103-0600 NutNut
-
11941303-0600 New partNew part
-
123B7-66151-0 Case, shift assistCase, shift assist
-
13940121-0400 WasherWasher
-
14916103-0550 BoltBolt
-
153B7-66153-0 Spring, shift assistSpring, shift assist
-
16940121-0500 WasherWasher
-
173B7-66152-0 Plug, shift assistPlug, shift assist
-
18930103-0500 NutNut
-
19346-05234-0 New partNew part
-
203B7-66122-0 Shift ArmShift Arm
-
213B7-63730-0 WasherWasher
-
223B7-63713-0 BushingBushing
-
233B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
243B7-63731-0 WasherWasher
-
25910103-6835 BoltBolt
-
263B7-83715-0 Cable JointCable Joint
-
27353-83719-0 WasherWasher
-
28951603-0800 R-PinR-Pin
-
293B7S80403-0 Shift lever ass'y
for F TypeShift lever ass'y
for F Type -
29-11346-62437-0 Bushing
, for F TypeBushing
, for F Type -
29-123B7-66124-0 Collar, 8.1-10.5-31.7
, for F TypeCollar, 8.1-10.5-31.7
, for F Type -
29-13910103-0855 Bolt
, for F TypeBolt
, for F Type -
29-14940103-0800 Washer -> 940113-0800
, for F TypeWasher -> 940113-0800
, for F Type -
29-15941303-0800 Spring Washer
, for F TypeSpring Washer
, for F Type -
29-23B7S66115-0 Bracket shift leverBracket shift lever
-
29-33B2-66112-0 Stopper, shift leverStopper, shift lever
-
29-4910103-0420 BoltBolt
-
29-5940103-0400 WasherWasher
-
29-6941303-0400 Spring WasherSpring Washer
-
29-73B7-66121-0 Stopper plate, shift lever
, for F TypeStopper plate, shift lever
, for F Type -
29-8910103-0616 Bolt
, for F TypeBolt
, for F Type -
29-9940103-0600 Washer
, for F TypeWasher
, for F Type -
313B7-66134-0 Rod, shift lever stopper
for F TypeRod, shift lever stopper
for F Type -
323B2-83865-0 Nut(No,10-32VNF)
for F TypeNut(No,10-32VNF)
for F Type -
33940103-0500 Washer
for F TypeWasher
for F Type -
34951503-0212 Split Pin
for F TypeSplit Pin
for F Type -
35353-72013-0 Label clutch
for F TypeLabel clutch
for F Type
