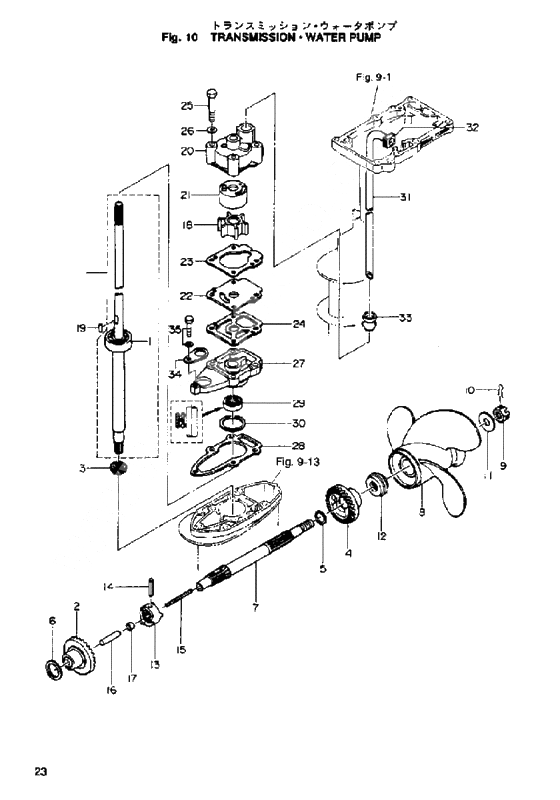

Transmission - water pump для Tohatsu M8B - 2002 года выпуска
-
№АртикулНазвание
-
13B2-64301-0 DriveshaftDriveshaft
-
3B2-64306-1 DriveshaftDriveshaft
-
13B2-64302-0 Drive shaft lDrive shaft l
-
13B2-64303-0 Drive Shaft ULDrive Shaft UL
-
3B2-64303-1 Drive Shaft ULDrive Shaft UL
-
1-19601-0-6301 Ball BearingBall Bearing
-
23B2-64010-0 Bevel Gear A
with BushingBevel Gear A
with Bushing -
33B2-64020-0 Bevel Gear BBevel Gear B
-
43B2-64030-0 Bevel Gear CBevel Gear C
-
5369-64032-0 WasherWasher
-
6369-64014-0 Shim 21-28-0.1Shim 21-28-0.1
-
6369-64015-0 Shim 21-28-0.15Shim 21-28-0.15
-
73B2-64211-0 elementelement
-
3V1-64211-1 elementelement
-
83B2-64515-0 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
Standard Propeller for Transoms L and UL.Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
Standard Propeller for Transoms L and UL. -
3B2B64515-1 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)
-
83B2-64517-0 Propeller (8.5), 3 x 8.9 x 8.3
Standard Propeller for Transom S.Propeller (8.5), 3 x 8.9 x 8.3
Standard Propeller for Transom S. -
83B2-64513-0 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) blackProp 8 & 9.8 hp (8.9 dia x 7 pitch) black
-
3B2B64514-0 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) blackProp 8 & 9.8 hp (8.9 dia x 7 pitch) black
-
9369-64121-0 Nut PropellerNut Propeller
-
10951503-0318 New partNew part
-
11369-64124-0 WasherWasher
-
123B2-64231-0 Thrust holder, propellerThrust holder, propeller
-
133B2-64215-0 ClutchClutch
-
14301-64217-0 Pin ClutchPin Clutch
-
153B2-64221-0 Spring ClutchSpring Clutch
-
3V1-64221-0 Spring ClutchSpring Clutch
-
16369-64223-0 Push Rod ClutchPush Rod Clutch
-
173B2-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
183B2-65021-0 Impeller, water pumpImpeller, water pump
-
193B2-65022-0 New partNew part
-
203B2-65016-0 Water Pump CaseWater Pump Case
-
213B2-65011-0 New partNew part
-
223B2-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
243B2-65029-0 New partNew part
-
26940103-0600 WasherWasher
-
273B2-65017-0 Water pump case lowerWater pump case lower
-
283B2-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
29309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
303B2-64023-0 Gap liner ,28-36.8
T=0.1, 0.15. 0.3Gap liner ,28-36.8
T=0.1, 0.15. 0.3 -
313B2-65100-0 Water pipe sWater pipe s
-
313B2-65110-0 Water Pipe LWater Pipe L
-
313B2-65120-0 Water Pipe ULWater Pipe UL
-
323B2-65195-0 Grommet upper water pumpGrommet upper water pump
-
33331-65014-0 Lock ring coolibg water pipeLock ring coolibg water pipe
-
34369-66033-0 Stopper Cam Rod BushingStopper Cam Rod Bushing
