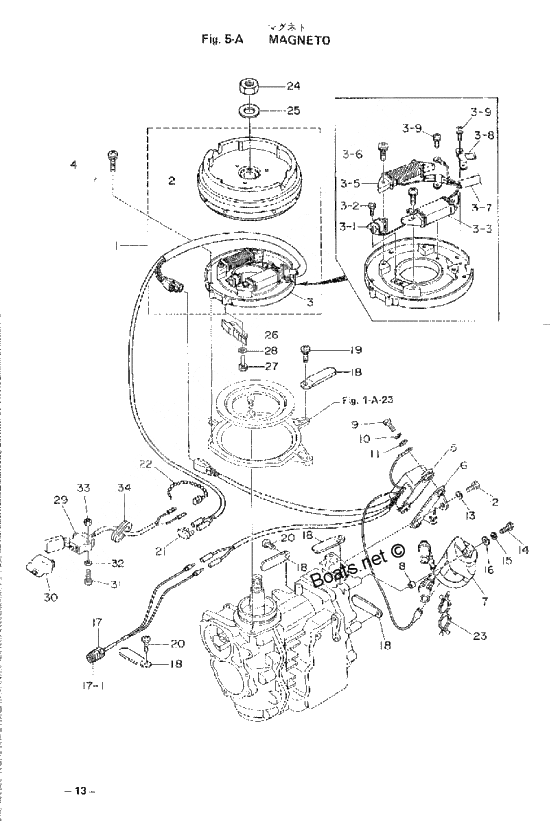

Magneto для Tohatsu M9.9B2 - 2002 года выпуска
-
№АртикулНазвание
-
1362-06090-2 Flywheel magneto assemblyFlywheel magneto assembly
-
2350-06001-2 Flywheel cupFlywheel cup
-
3362-06002-1 Coil plate assemblyCoil plate assembly
-
3-1362-06022-0 Trigger coilTrigger coil
-
3-3350-06023-0 AlternatorAlternator
-
3-5350-06021-0 Exciter coilExciter coil
-
3-7362-06024-1 Magneto cordMagneto cord
-
3-8350-06025-0 Holder, magneto cordHolder, magneto cord
-
5362-06060-1 C.D. UnitC.D. Unit
-
6362-06061-0 Bracket, c.d. unitBracket, c.d. unit
-
7362-06050-0 Ignition CoilIgnition Coil
-
8362-06903-0 Spacer ignition coilSpacer ignition coil
-
9910103-0620 BoltBolt
-
10941303-0600 New partNew part
-
11940-13060-0 WasherWasher
-
17361-06930-0 Stop switchStop switch
-
17-1309-06931-0 Water proof coverWater proof cover
-
18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
19922-53651-0 Screw (with spring washer)Screw (with spring washer)
-
20910103-0612 New partNew part
-
21353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
22336-76091-0 Band Battery CordBand Battery Cord
-
23346-06916-0 Clip high tension cordClip high tension cord
-
24334-00132-0 Nut 16p1.5lNut 16p1.5l
-
25334-00133-0 Washer magneto
17-30-1.6mmWasher magneto
17-30-1.6mm -
26364-63718-0 Throttle CamThrottle Cam
-
27910-13051-4 BoltBolt
-
28940-13050-0 WasherWasher
-
29361-06940-0 Plug receptacle assembly
OptionPlug receptacle assembly
Option -
30336-06950-0 Plug ass'y
OptionPlug ass'y
Option -
32940-13040-0 Washer, consent
OptionWasher, consent
Option -
33930103-0500 Nut
OptionNut
Option -
34345-67169-0 Grommet lighting cord
OptionGrommet lighting cord
Option
