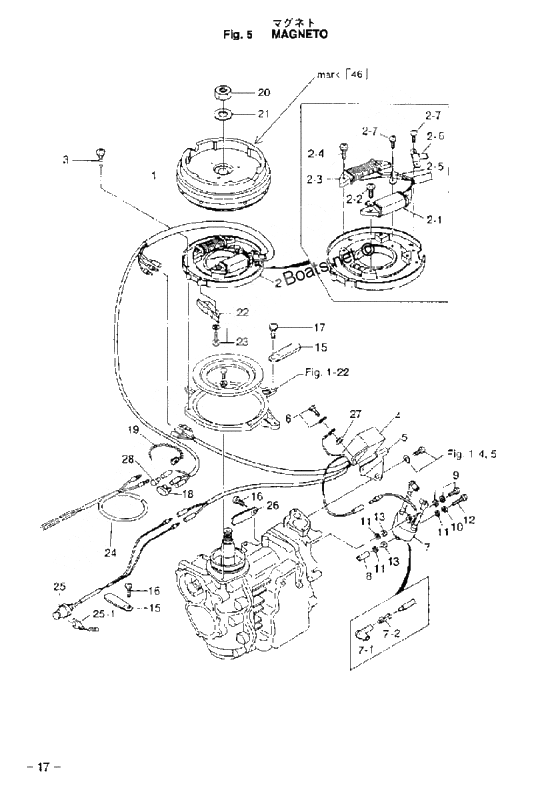

Magneto для Tohatsu M9.9D2 - 2002 года выпуска
-
№АртикулНазвание
-
13G2-06001-1 Flywheel cup
18E2/15D2/9.9D2Flywheel cup
18E2/15D2/9.9D2 -
23G2-06002-1 Coil plate ass'y
18E2/15D2/9.9D2Coil plate ass'y
18E2/15D2/9.9D2 -
2-13G3-06021-1 Exciter coil set
18E2/15D2/9.9D2Exciter coil set
18E2/15D2/9.9D2 -
2-2921521-6524 Stud BoltStud Bolt
-
2-33G2-06023-1 Altrenator set
18E2/15D2/9.9D2Altrenator set
18E2/15D2/9.9D2 -
2-53G2-06025-1 ClanpClanp
-
2-6350-06025-0 Holder, magneto cordHolder, magneto cord
-
2-7921521-6406 Stud BoltStud Bolt
-
3921521-6510 Stud BoltStud Bolt
-
43G2-06060-2 New part
18E2/15D2/9.9D2New part
18E2/15D2/9.9D2 -
53G2-06061-0 Bracket c.d.unit
18E2/15D2/9.9D2Bracket c.d.unit
18E2/15D2/9.9D2 -
73G2-06040-1 Ignition coil ass'y (w/resistance cap)Ignition coil ass'y (w/resistance cap)
-
73G2-06050-0 Ignition coil ass'yIgnition coil ass'y
-
7-13M2-06921-0 Plug capPlug cap
-
7-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
7-23M2-06926-0 Terminal plug capTerminal plug cap
-
8128-02605-1 Spacer,6-5-28.5Spacer,6-5-28.5
-
9910103-7620 BoltBolt
-
10941303-0600 New partNew part
-
11940103-0600 WasherWasher
-
12910103-0650 BoltBolt
-
13151-33159-0 Gasket,combination gaugeGasket,combination gauge
-
15309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
16921503-0610 Stud BoltStud Bolt
-
17922521-6510 Stud BoltStud Bolt
-
18353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
19336-76091-0 Band Battery CordBand Battery Cord
-
20334-00132-0 Nut 16p1.5lNut 16p1.5l
-
21353-06821-0 Lock, lanyard stop switch
ROCK, LANYARD STOP SWITCHLock, lanyard stop switch
ROCK, LANYARD STOP SWITCH -
21334-00133-0 Washer magnetoWasher magneto
-
23910103-5514 BoltBolt
-
24369-76167-0 Extension cord light
OPTIONExtension cord light
OPTION -
25398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
26398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
273C8-66308-0 New partNew part
-
293A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
