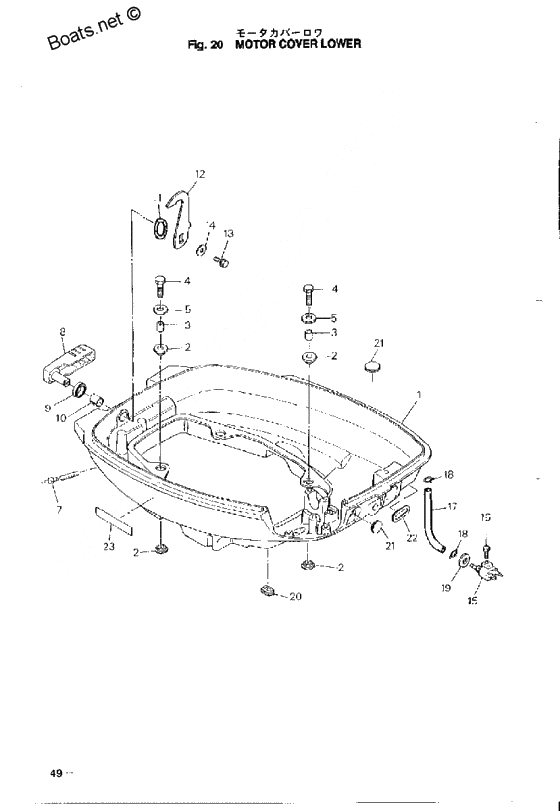

Motor cover lower для Tohatsu MFS15B - 2002 года выпуска
-
№АртикулНазвание
-
13R3S67100-0 Motor cover lowerMotor cover lower
-
2346-67113-0 Mount RubberMount Rubber
-
3346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
5346-67115-0 WasherWasher
-
7353-01138-0 Water NippleWater Nipple
-
83R3S67141-0 Hook leverHook lever
-
9338-67147-0 New partNew part
-
10350-67105-0 New partNew part
-
11941403-1400 New partNew part
-
123R3-67142-0 Cover HookCover Hook
-
13910103-6612 BoltBolt
-
143C8-66308-0 New partNew part
-
15394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
16910103-0625 BoltBolt
-
18338-02215-0 ClipClip
-
193R3-67082-0 Grommet, fuel connectorGrommet, fuel connector
-
203B2-63624-0 GrommetGrommet
-
21345-67117-0 New part
2 for EPNew part
2 for EP -
223R3-67162-0 Grommet, Battery CordGrommet, Battery Cord
-
233H6-67572-0 LABEL, STORAGELABEL, STORAGE
