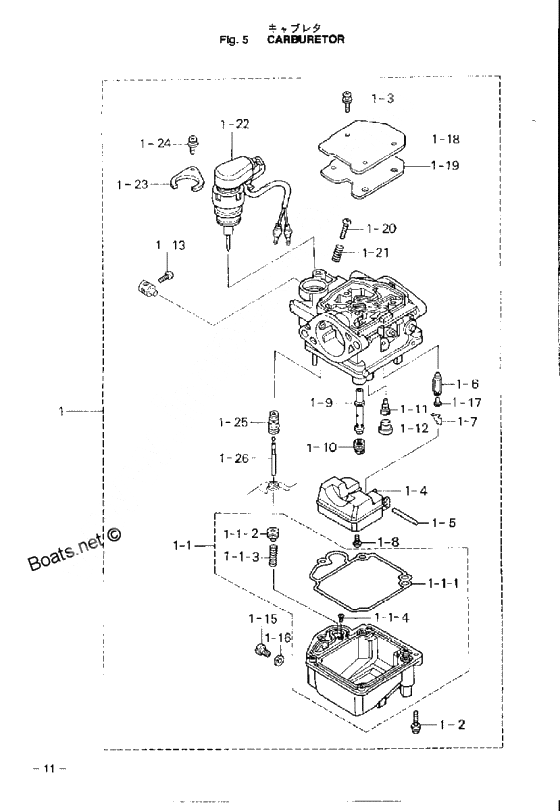

Carburetor для Tohatsu MFS18B - 2002 года выпуска
-
№АртикулНазвание
-
13V9-03500-0 Carburetor ass'y 18Carburetor ass'y 18
-
1-13R3-03221-0 Float ChamberFloat Chamber
-
1-1-13R3-03222-0 O-ring,float chamberO-ring,float chamber
-
1-1-23R3-03315-0 Plunger compPlunger comp
-
1-1-33R3-03314-0 Катушка пружиныКатушка пружины
-
1-1-43R3-03316-0 Stud BoltStud Bolt
-
1-103V9-03251-0 Main jet #108Main jet #108
-
1-113V9-03255-0 Slow jet #58Slow jet #58
-
1-12346-03256-0 Rubber capRubber cap
-
1-133R3-03180-0 Stud BoltStud Bolt
-
1-153R3-03292-0 Drain ScrewDrain Screw
-
1-163R3-03293-0 O-RingO-Ring
-
1-17334-03242-0 Игольчатый клапанИгольчатый клапан
-
1-183R3-03181-0 Carburetor coverCarburetor cover
-
1-193R3-03182-0 Gasket,carburetor coverGasket,carburetor cover
-
1-2922503-6414 Stud BoltStud Bolt
-
1-20346-03265-0 Stop ScrewStop Screw
-
1-213R3-03267-0 Spring WasherSpring Washer
-
1-223R3-03410-0 Auto-by-stater ass'y
*Assembly of Kit Part - with O-RingAuto-by-stater ass'y
*Assembly of Kit Part - with O-Ring -
1-233R3-03411-0 HolderHolder
-
1-253R3-03311-0 Rubber bootRubber boot
-
1-263R3-03312-0 Link RodLink Rod
-
1-3369-03186-0 Stud BoltStud Bolt
-
1-43R3-03231-0 FloatFloat
-
1-53F3-03232-0 Arm Pin FloatArm Pin Float
-
1-63R3-03240-0 Float ValveFloat Valve
-
1-7344-03244-0 ClipClip
-
1-83R3-03234-0 Stud BoltStud Bolt
-
1-93R3-03252-0 Main NozzleMain Nozzle
