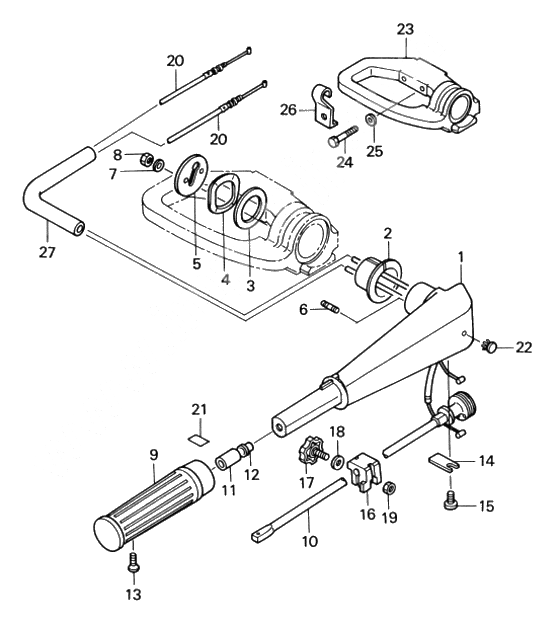

Steering handle (tiller handle) для Tohatsu MFS25A - 2002 года выпуска
-
№АртикулНазвание
-
13R3S63011-0 Рулевой рычаг и кабель
FOR MF & EFРулевой рычаг и кабель
FOR MF & EF -
23R3-63102-0 Bushing, Handle
FOR MF & EFBushing, Handle
FOR MF & EF -
33R3-63108-0 Washer
FOR MF & EFWasher
FOR MF & EF -
43R3-63109-0 Washer
FOR MF & EFWasher
FOR MF & EF -
53R3-63107-0 Plate, Steering Handle
FOR MF & EFPlate, Steering Handle
FOR MF & EF -
63B2-63104-1 Stud Bolt
FOR MF & EFStud Bolt
FOR MF & EF -
7940113-0600 Washer
OR 940103-0600 / FOR MF & EFWasher
OR 940103-0600 / FOR MF & EF -
8930113-0600 Nut
OR 930103-0600 / FOR MF & EFNut
OR 930103-0600 / FOR MF & EF -
93R3-63012-0 Grip
FOR MF & EFGrip
FOR MF & EF -
103R3-63041-0 Throttle Shaft
FOR MF & EFThrottle Shaft
FOR MF & EF -
11345-63048-0 Rubber Throttle Shaft A
FOR MF & EFRubber Throttle Shaft A
FOR MF & EF -
12350-63046-0 Bushing
FOR MF & EFBushing
FOR MF & EF -
13921803-0518 Stud Bolt
FOR MF & EFStud Bolt
FOR MF & EF -
143B2-63063-0 Supporter Throttle Shaft
FOR MF & EFSupporter Throttle Shaft
FOR MF & EF -
15921513-0612 Stud Bolt
FOR MF & EFStud Bolt
FOR MF & EF -
163B2-63035-1 Friction Piece Grip
FOR MF & EFFriction Piece Grip
FOR MF & EF -
173B2-63034-0 Adjust Screw
FOR MF & EFAdjust Screw
FOR MF & EF -
18940113-0600 Washer
OR 940103-0600 / FOR MF & EFWasher
OR 940103-0600 / FOR MF & EF -
19930113-0600 Nut
OR 930103-0600 / FOR MF & EFNut
OR 930103-0600 / FOR MF & EF -
203R0-63600-0 Throttle Cable
FOR MF & EFThrottle Cable
FOR MF & EF -
213V9-72019-0 Label,Throttle
FOR MF & EFLabel,Throttle
FOR MF & EF -
22350-67154-0 New part
FOR MF & EFNew part
FOR MF & EF -
233R3S62001-0 Bracket, steering
FOR MF & EFBracket, steering
FOR MF & EF -
243R3-62094-0 Stut bolt, 10 p=1.5-80
FOR MF & EFStut bolt, 10 p=1.5-80
FOR MF & EF -
25940113-1000 Washer
FOR MF & EFWasher
FOR MF & EF -
263R0-63628-0 Clamp,throttle Cable
FOR MF & EFClamp,throttle Cable
FOR MF & EF -
273R0-06157-0 Protection Tube
FOR MF & EFProtection Tube
FOR MF & EF
