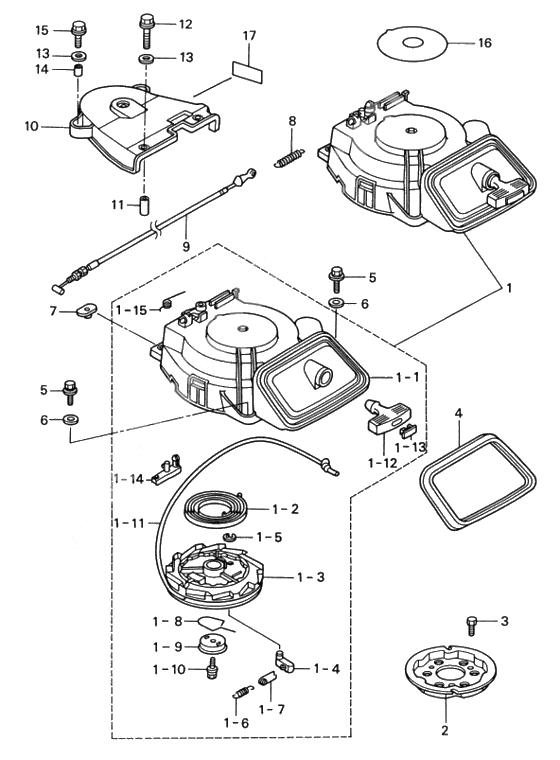

Recoil starter для Tohatsu MFS30A - 2002 года выпуска
-
№АртикулНазвание
-
13R3-05090-0 Recoil starter ass'yRecoil starter ass'y
-
1-13H8-05105-0 Starter CaseStarter Case
-
1-103R3-05138-0 Bolt,Starter ShaftBolt,Starter Shaft
-
1-113R3-05013-0 Starter RopeStarter Rope
-
1-123C8-05019-0 Starter handle completeStarter handle complete
-
1-133R3-05131-0 Cap,Starter HandleCap,Starter Handle
-
1-143R3-05252-0 Starter LockStarter Lock
-
1-153R3-05216-0 Spring WasherSpring Washer
-
1-23H8-05004-0 Spring WasherSpring Washer
-
1-33R3-05106-0 ReelReel
-
1-43R3-05003-0 RatchetRatchet
-
1-53R3-05011-0 E-Ring,d=10E-Ring,d=10
-
1-63R3-05012-0 Return SpringReturn Spring
-
1-73H8-05123-0 Ratchet guideRatchet guide
-
3H8-05123-1 Ratchet guideRatchet guide
-
1-83R3-05007-0 Spring WasherSpring Washer
-
1-93R3-05006-0 Friction PlateFriction Plate
-
23R0-05901-0 Starter pullyStarter pully
-
3910113-5616 Bolt
OR 910103-5616Bolt
OR 910103-5616 -
43R0-67503-0 Seal rubber starterSeal rubber starter
-
5910113-0620 Bolt
OR 910103-0620Bolt
OR 910103-0620 -
63C8-66308-0 New partNew part
-
73F3-76042-1 NutNut
-
83R3-05258-0 Arm springArm spring
-
93R3-05217-0 WireWire
-
103R3-06308-0 Belt VoverBelt Vover
-
113R0-06303-0 Collar,6.2-9-12.3Collar,6.2-9-12.3
-
12910113-0625 Bolt
OR 910103-0625Bolt
OR 910103-0625 -
133C8-66308-0 New partNew part
-
143A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
15910113-0620 Bolt
OR 910103-0620Bolt
OR 910103-0620 -
163R0-72181-0 Caution Label BCaution Label B
-
173H6-72026-0 Label, Spark PlugLabel, Spark Plug
