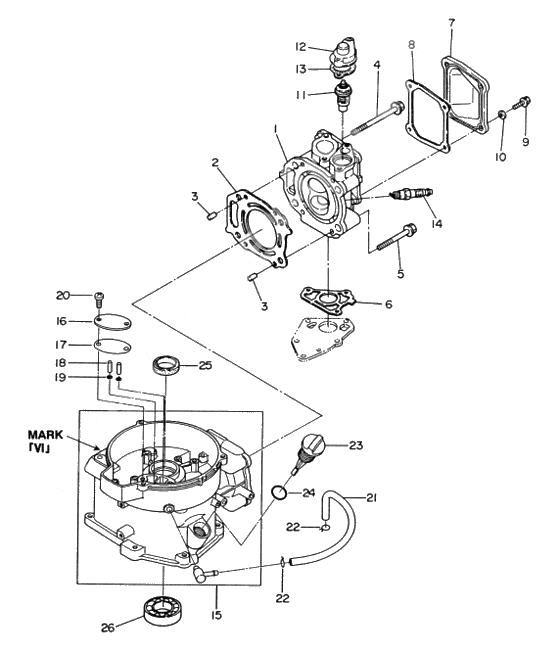

Cylinder cylinder head для Tohatsu MFS4A2 - 2002 года выпуска
-
№АртикулНазвание
-
13R4B01001-1 Cylinder Head Comp.Cylinder Head Comp.
-
23H6-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H6-01012-0 Bolt, Cyl. Head
01.08.1990 0:00:00Bolt, Cyl. Head
01.08.1990 0:00:00 -
53H6-01013-0 Bolt, Cyl. Head
01.08.1960 0:00:00Bolt, Cyl. Head
01.08.1960 0:00:00 -
63H6-02306-0 Gasket,exh.portGasket,exh.port
-
73H6B01021-0 Cover,Cyl.headCover,Cyl.head
-
83H6-01024-0 Gasket,head CoverGasket,head Cover
-
9910121-0616 BoltBolt
-
103R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
113H6-01030-0 Thermostat
MARK 5BThermostat
MARK 5B -
13346-01032-0 New partNew part
-
149701-1-1103 Spark plug (dcpr6e)Spark plug (dcpr6e)
-
153R1B01100-4 Sylinder comp.
MARK [VI]Sylinder comp.
MARK [VI] -
163R1B07431-1 Cap breezerchamber(5a new)Cap breezerchamber(5a new)
-
173R1-07432-1 Gasket, breezer cap(5a new)Gasket, breezer cap(5a new)
-
183R1-07439-0 Collar, Breather(5A new)Collar, Breather(5A new)
-
19941403-0500 WasherWasher
-
20921521-6616 Stud BoltStud Bolt
-
213R1-07435-0 Breezer Pipe(5A New)Breezer Pipe(5A New)
-
223C7-02215-0 ClipClip
-
233H6-07421-0 Filler Cap, Engine- OilFiller Cap, Engine- Oil
-
243H6-07422-0 New partNew part
-
25101-00121-0 Oil seal,20-35-7Oil seal,20-35-7
-
269601-3-6205 Ball BearingBall Bearing
