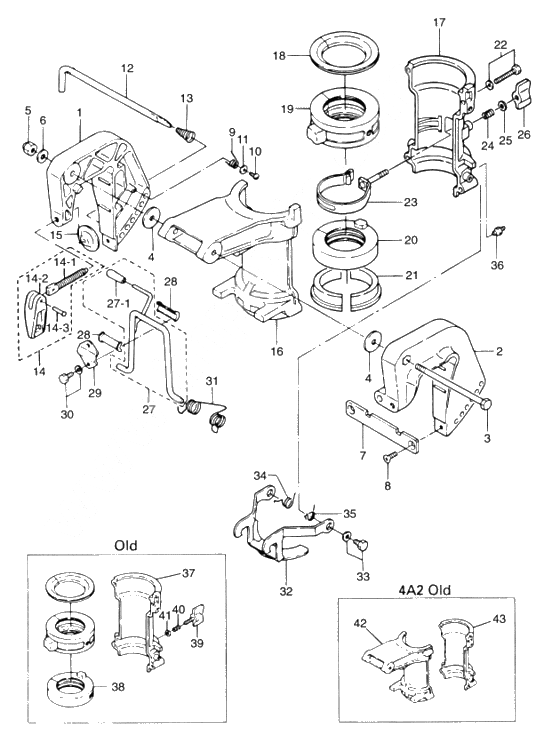

Bracket - reverse lock для Tohatsu MFS5A2 - 2002 года выпуска

№

Артикул

Название
1

369S62112-3 Stern bracket r

Stern bracket r

3 870 ₽
2

369S62113-2 Stern bracket l

Stern bracket l

3 850 ₽
3

309-62115-2 Bolt 8-122

Bolt 8-122

990 ₽
4

307-62116-1 Washer

Washer

210 ₽
5

930446-0800 Nylon Nut

Nylon Nut

250 ₽
6

940113-0800 Washer

Washer

140 ₽
7

3B2-62118-0 Distance Plate, Bracket

Distance Plate, Bracket

520 ₽
8

921613-0612 Stud Bolt

Stud Bolt

90 ₽
9

369-62146-1 Spring Stern Bracket

Spring Stern Bracket

340 ₽
10

920703-0406 Stud Bolt

Stud Bolt

70 ₽
11

369-62147-0 Washer

Washer

110 ₽
12

350-62121-1 Thrust Rod

Thrust Rod

1 500 ₽
13

369-62122-2 Spring Thrust Rod

Spring Thrust Rod

410 ₽
14

369S62100-1 Clamp Screw Ass'y

Clamp Screw Ass'y

1 650 ₽
14-1

369-62103-0 Винт струбцины

Винт струбцины

720 ₽
14-2

307S62102-1 Handle, clamp screw

Handle, clamp screw

970 ₽
14-3

3C8-62104-1 Rivet3-22

Rivet3-22

120 ₽
15

332-62101-0 Pad clamp screw

Pad clamp screw

1 230 ₽
16

3H6S62391-0 Swivel bracket a
4A2 #12183~

Swivel bracket a
4A2 #12183~

6 360 ₽
17

3H6S62392-1 Sweivel bracket b
6A2 #01751~ / 5A2 #19757~ / 4A2 #12183~

Sweivel bracket b
6A2 #01751~ / 5A2 #19757~ / 4A2 #12183~

2 930 ₽
18

3H6-62325-0 Thrust Bushing

Thrust Bushing

2 190 ₽
19

3H6-61301-0 Bushing Upper, Steering

Bushing Upper, Steering

2 720 ₽
20

3H6-62417-1 Bushing Lower Steering
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

Bushing Lower Steering
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

3 850 ₽
21

3H6-62424-0 Thrust Plate B

Thrust Plate B

1 170 ₽
22

910113-5640 Bolt

Bolt

150 ₽
23

3H9-62441-0 Band friction
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

Band friction
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

1 700 ₽
24

3H9-62446-0 Spring,Co Pilot
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

Spring,Co Pilot
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

390 ₽
25

3R0-66308-0 Washer
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

Washer
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

190 ₽
26

3H9-62442-0 Wing Nut M6
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

Wing Nut M6
6A2 #01751~ / 5A2 #19757~ / 4A2 #12188~

720 ₽
27

393S62431-2 Tilt Stopper Ass'y

Tilt Stopper Ass'y

1 630 ₽
27-1

393-62433-0 Grip Tilt Stopper

Grip Tilt Stopper

120 ₽
3AS-62433-0 Grip Tilt Stopper

Grip Tilt Stopper

250 ₽
28

393-62437-0 Bushing Tilt Stopper

Bushing Tilt Stopper

190 ₽
29

369-62439-1 Set Plate Tilt Stopper

Set Plate Tilt Stopper

420 ₽
30

910113-5612 Bolt

Bolt

170 ₽
31

369-62434-0 Spring Tilt Stopper

Spring Tilt Stopper

1 520 ₽
32

3H6-66313-0 Reverse Lock Arm

Reverse Lock Arm

5 140 ₽
33

910113-5614 Bolt

Bolt

140 ₽
34

369-66338-0 Spring R Reverse Lock Arm

Spring R Reverse Lock Arm

210 ₽
35

369-66339-0 Spring L Reverse Lock Arm

Spring L Reverse Lock Arm

210 ₽
36

344-67177-0 Масленка

Масленка

210 ₽
37

3H6S62392-0 Swivel braket b
6A2 ~#01750 / 5A2 ~#19756

Swivel braket b
6A2 ~#01750 / 5A2 ~#19756

2 930 ₽
38

3H6-62417-0 Bushing lower steeri
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

Bushing lower steeri
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

1 510 ₽
39

309S62442-2 Steering adjust screw
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

Steering adjust screw
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

1 020 ₽
40

309-62446-1 Spring Steering Friction
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

Spring Steering Friction
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

190 ₽
41

940103-0600 Washer
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

Washer
6A2 ~#01750 / 5A2 ~#19756 / 4A2 ~#11987

110 ₽
42

3H9S62391-0 Swivel bracket a
FOR 4HP ONLY

Swivel bracket a
FOR 4HP ONLY

6 360 ₽
43

3H9S62392-0 Swivel bracket b
FOR 4HP ONLY

Swivel bracket b
FOR 4HP ONLY

2 530 ₽
43

3H9S62392-1 Swivel bracket b
FOR 4HP ONLY

Swivel bracket b
FOR 4HP ONLY

2 930 ₽

Все узлы модели:
