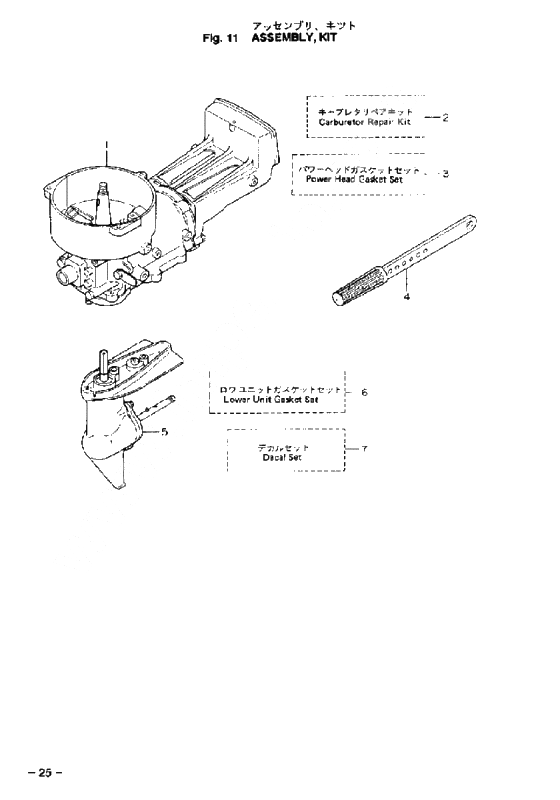

Assembly kit для Tohatsu M2.5A - 2003 года выпуска
-
№АртикулНазвание
-
1314B87100-2 Engine short blockEngine short block
-
2921532-6410 Stud BoltStud Bolt
-
2309-03193-0 Gasket drain screwGasket drain screw
-
2309-03116-2 O-RingO-Ring
-
2309-03126-0 Pin float hingePin float hinge
-
2314-87122-1 Carburetor Rerair KitCarburetor Rerair Kit
-
2309-03127-1 New partNew part
-
2309-03154-0 Clip jet needleClip jet needle
-
2309-03147-1 New partNew part
-
23D5-03153-1 Жиклер игольчатыйЖиклер игольчатый
-
2309-03148-1 New partNew part
-
2309-03121-0 Gasket float chamberGasket float chamber
-
2309-03156-0 Slow stop screwSlow stop screw
-
2309-03125-0 FloatFloat
-
3309-87121-0 Power Head Gasket SetPower Head Gasket Set
-
3309-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
309-01005-2 Gasket, Cyl. HeadGasket, Cyl. Head
-
3309-00121-0 Oil seal 20-42-8Oil seal 20-42-8
-
3309-00122-0 Oil seal,15-35-15Oil seal,15-35-15
-
3309-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
4309S63010-0 Steering handle ass'ySteering handle ass'y
-
5309S87301-1 Lower unit ass'yLower unit ass'y
-
6309-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
6309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
6309-65015-0 O-Ring
, тИЕ1.5 - тИЕ47.75O-Ring
, тИЕ1.5 - тИЕ47.75 -
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
1314B87100-2 Engine short blockEngine short block
-
2921532-6410 Stud BoltStud Bolt
-
2309-03193-0 Gasket drain screwGasket drain screw
-
2309-03116-2 O-RingO-Ring
-
2309-03126-0 Pin float hingePin float hinge
-
2314-87122-1 Carburetor Rerair KitCarburetor Rerair Kit
-
2309-03127-1 New partNew part
-
2309-03154-0 Clip jet needleClip jet needle
-
2309-03147-1 New partNew part
-
23D5-03153-1 Жиклер игольчатыйЖиклер игольчатый
-
2309-03148-1 New partNew part
-
2309-03121-0 Gasket float chamberGasket float chamber
-
2309-03156-0 Slow stop screwSlow stop screw
-
2309-03125-0 FloatFloat
-
3309-87121-0 Power Head Gasket SetPower Head Gasket Set
-
3309-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
309-01005-2 Gasket, Cyl. HeadGasket, Cyl. Head
-
3309-00121-0 Oil seal 20-42-8Oil seal 20-42-8
-
3309-00122-0 Oil seal,15-35-15Oil seal,15-35-15
-
3309-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
4309S63010-0 Steering handle ass'ySteering handle ass'y
-
5309S87301-1 Lower unit ass'yLower unit ass'y
-
6309-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
6309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
6309-65015-0 O-Ring
, тИЕ1.5 - тИЕ47.75O-Ring
, тИЕ1.5 - тИЕ47.75 -
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
