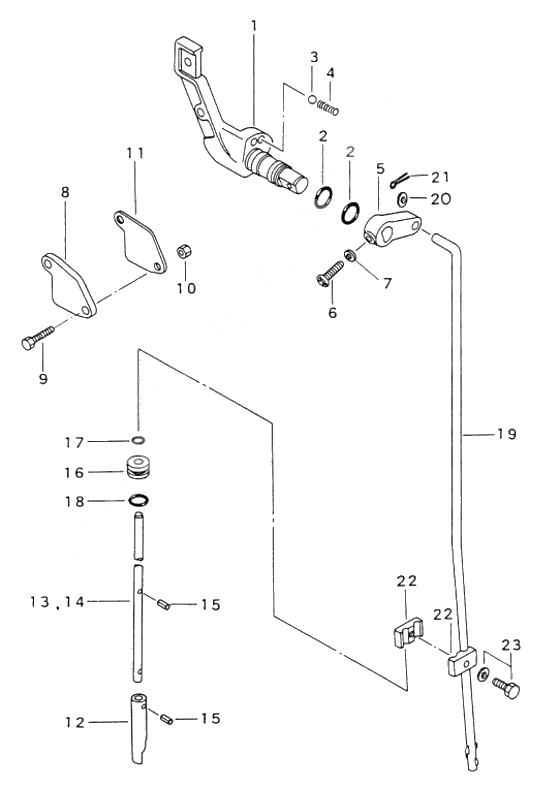

3.5b2 model only - shift для Tohatsu M3.5B2 - 2003 года выпуска
-
№АртикулНазвание
-
13F0-66110-0 Shift LeverShift Lever
-
23G9-66136-0 O-RingO-Ring
-
3369-66116-0 Ceramic Ball 7.7Ceramic Ball 7.7
-
4369-66112-1 Spring Shift Lever StopperSpring Shift Lever Stopper
-
53F0-66225-0 Shift Rod LeverShift Rod Lever
-
63F0-66227-0 Screw 4-20Screw 4-20
-
7940103-0400 WasherWasher
-
83F0S66228-0 Cover shift rod leverCover shift rod lever
-
9910113-0616 BoltBolt
-
10930113-0600 NutNut
-
113F0-66229-1 Gasket shift rod lever coverGasket shift rod lever cover
-
123F0-66011-0 Clutch CamClutch Cam
-
133F0-66012-0 Cam rod s
FOR TRANSOM SCam rod s
FOR TRANSOM S -
143F0-66013-0 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
15951407-0308 Spring WasherSpring Washer
-
163F0-66031-0 Bushing Cam RodBushing Cam Rod
-
17369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
18301-66023-0 O-RingO-Ring
-
193F0-66214-0 Shift RodShift Rod
-
20940103-0500 WasherWasher
-
21951503-0212 Split PinSplit Pin
-
22369-66241-0 Joint Shift RodJoint Shift Rod
-
23910103-5616 Bolt
OR 910113-5616Bolt
OR 910113-5616
