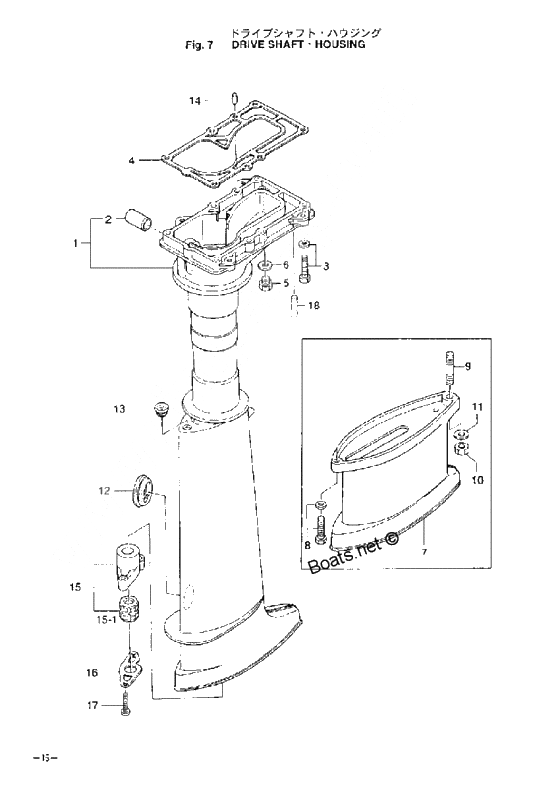

Drive shaft - housing для Tohatsu M4C - 2003 года выпуска
-
№АртикулНазвание
-
1369S61020-2 Drive shaft housing s
for Transom S""Drive shaft housing s
for Transom S"" -
1369S61030-2 Drive shaft housing l
for Transom L" "UL""Drive shaft housing l
for Transom L" "UL"" -
2301-61021-0 Bushing Shift LeverBushing Shift Lever
-
4369-61012-0 New partNew part
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369S61110-0 Extension housing ul
for Transom UL""Extension housing ul
for Transom UL"" -
12369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
13369-66043-1 Grommet Cam RodGrommet Cam Rod
-
14345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
15369-64331-1 Bushing drive shaft
for Transom L" "UL""Bushing drive shaft
for Transom L" "UL"" -
15-1369-60003-0 Bushing drive shaftBushing drive shaft
-
16369-64332-0 Stopper drive shaft bushingStopper drive shaft bushing
-
17921503-0510 Stud Bolt
for Transom S""Stud Bolt
for Transom S"" -
173H6-64333-0 Stud Bolt
for Transom U" "UL""Stud Bolt
for Transom U" "UL"" -
18369-61097-0 Tube,drive shaft housingTube,drive shaft housing
