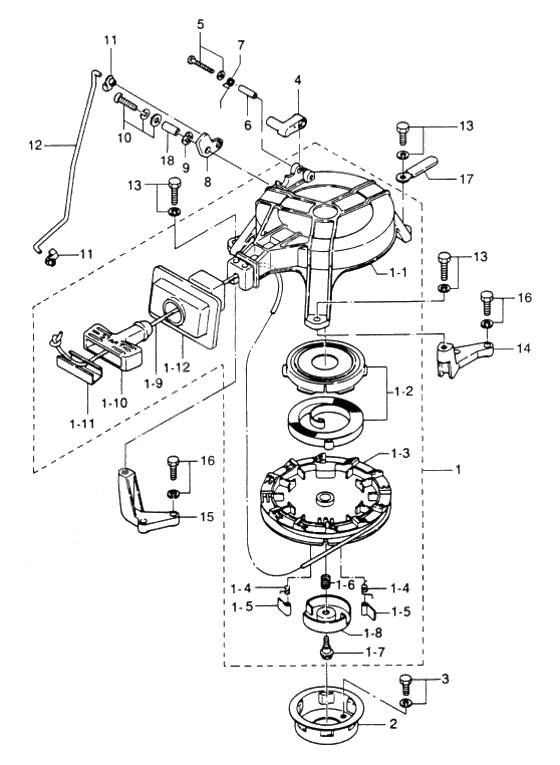

Recoil starter & starter lock для Tohatsu M8B - 2003 года выпуска
-
№АртикулНазвание
-
13B2-05000-0 Recoil starter ass'yRecoil starter ass'y
-
1-13B2-05105-0 Starter CaseStarter Case
-
1-103B2-05019-0 Starter HandleStarter Handle
-
1-113B2-05131-0 Rope anchorRope anchor
-
1-123B2-05116-0 Seal plate starterSeal plate starter
-
1-23B2-05010-0 Starter spring setStarter spring set
-
1-33B2-05104-0 ReelReel
-
1-4369-05012-0 Return SpringReturn Spring
-
1-53B2-05003-0 RatchetRatchet
-
1-6369-05007-0 Spring WasherSpring Washer
-
1-73B2-05138-0 Bolt starter shaftBolt starter shaft
-
1-83B2-05006-0 Friction PlateFriction Plate
-
1-93B2-05013-0 Starter Rope
ø 4.5-1620Starter Rope
ø 4.5-1620 -
23B2-05901-0 Starter pulleyStarter pulley
-
3910121-6612 BoltBolt
-
4338-05252-0 Lock starterLock starter
-
5921503-5430 Stud BoltStud Bolt
-
6338-05255-0 Coller starter lock shaftColler starter lock shaft
-
7338-05216-0 Spring starter lock shaftSpring starter lock shaft
-
83B2-05253-0 Cam starter lockCam starter lock
-
9941403-0800 WasherWasher
-
10921503-7616 Stud BoltStud Bolt
-
113K9-05223-0 Rod Snap 4-2
9.8B # 15989~ / 8B # 75661~Rod Snap 4-2
9.8B # 15989~ / 8B # 75661~ -
123B2-05217-1 Rod starter lock
9.8B # 15989~ / 8B # 75661~Rod starter lock
9.8B # 15989~ / 8B # 75661~ -
13910103-6620 BoltBolt
-
143B2B05101-0 Starter bracket lStarter bracket l
-
153B2B05102-0 Starter bracket rStarter bracket r
-
16910121-6623 BoltBolt
-
17309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
183M2-05215-0 Coler 6.1-8-4Coler 6.1-8-4
