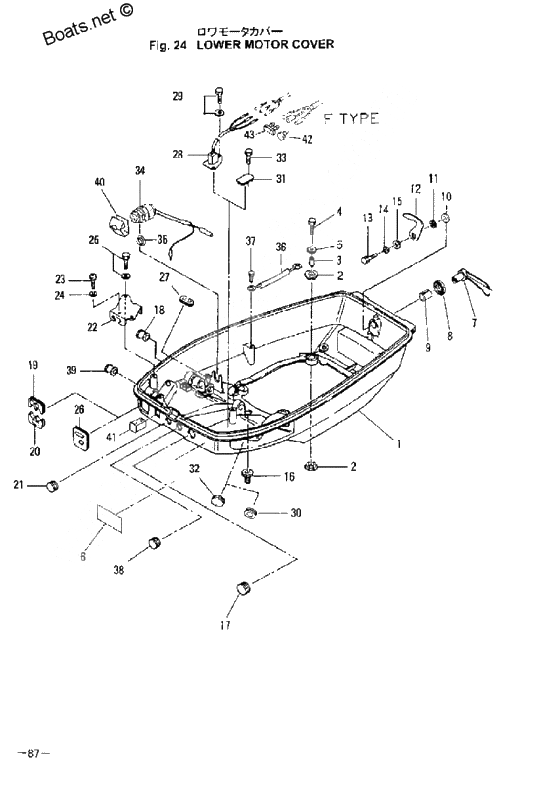

Lower motor cover для Tohatsu MD50B - 2003 года выпуска
-
№АртикулНазвание
-
13C8S67100-0 Lower motor coverLower motor cover
-
2346-67113-0 Mount RubberMount Rubber
-
3346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
5346-67115-0 WasherWasher
-
63T5-72057-0 Lavel, power trim & switch
for P TypeLavel, power trim & switch
for P Type -
73C8S67141-0 Hook leverHook lever
-
8338-67147-0 New partNew part
-
9369-67105-0 BushingBushing
-
103C8-67146-0 WasherWasher
-
11941403-1400 New partNew part
-
123C8-67142-0 Cover HookCover Hook
-
13910114-0612 BoltBolt
-
14941303-0600 New partNew part
-
153C8-66308-0 New partNew part
-
16345-66226-0 Grommet, 17-3Grommet, 17-3
-
17345-76092-0 GrommetGrommet
-
183B7-01046-0 PlugPlug
-
193C8-83732-0 Grommet Remote Control CableGrommet Remote Control Cable
-
203C8-76116-1 Grommet CordGrommet Cord
-
21345-67117-0 New part
for P TypeNew part
for P Type -
223C8-83820-0 Bracket remote control cableBracket remote control cable
-
233C8-83821-0 Stud Bolt
for P TypeStud Bolt
for P Type -
24941303-0400 Spring Washer
for P TypeSpring Washer
for P Type -
263T5-67162-0 Grommet, Battery Cord
for P TypeGrommet, Battery Cord
for P Type -
273C8-63624-0 Grommet Throttle Hole
for F TypeGrommet Throttle Hole
for F Type -
273C8-63621-0 Grommet throttle wire
for F TypeGrommet throttle wire
for F Type -
283T5-72613-0 Switch b ass'y, ptt
for P TypeSwitch b ass'y, ptt
for P Type -
29910113-5612 Bolt
for P TypeBolt
for P Type -
30338-67163-0 Supporting Rubber Fuel Pipe
for P TypeSupporting Rubber Fuel Pipe
for P Type -
313C8-72619-0 Grommet
for F TypeGrommet
for F Type -
323C8-77223-0 SpringSpring
-
34398-76080-0 Neutral Switch Ass'y
for F TypeNeutral Switch Ass'y
for F Type -
353B7-63731-0 Washer
for F TypeWasher
for F Type -
363N4-76142-0 Ground cordGround cord
-
37910103-6612 BoltBolt
-
393B2-67187-0 Grommet Throttle Shaft
for P TypeGrommet Throttle Shaft
for P Type -
40398-76083-0 Actuator Neutral Switch
for F TypeActuator Neutral Switch
for F Type -
413T5-67150-0 Cap, Choke KnobCap, Choke Knob
-
423A3-76037-0 Plug B Cable Terminal
for F TypePlug B Cable Terminal
for F Type -
43353-76037-0 Plug Cable TerminalPlug Cable Terminal
