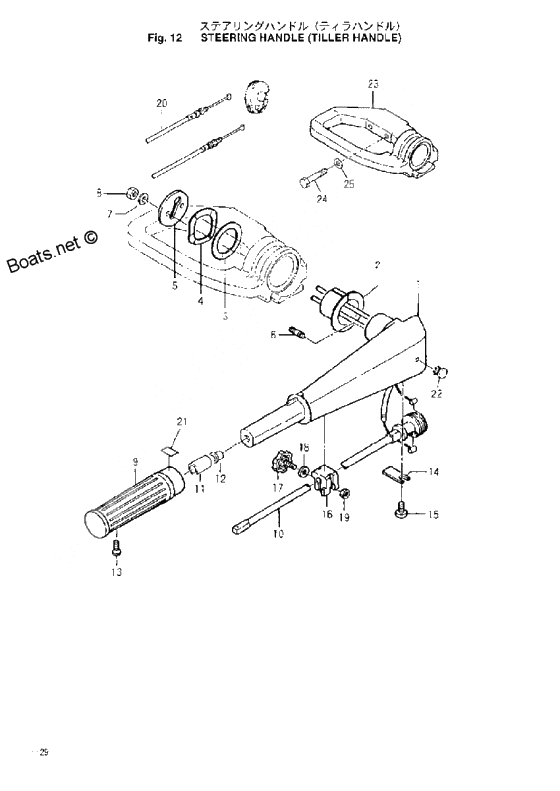

Steering handle (tiller handle) для Tohatsu MFS15B2 - 2003 года выпуска
-
№АртикулНазвание
-
13R3S63011-0 Рулевой рычаг и кабель
for MF & EFРулевой рычаг и кабель
for MF & EF -
23R3-63102-0 Bushing, Handle
for MF & EFBushing, Handle
for MF & EF -
33R3-63108-0 Washer
for MF & EFWasher
for MF & EF -
43R3-63109-0 Washer
for MF & EFWasher
for MF & EF -
53R3-63107-0 Plate, Steering Handle
for MF & EFPlate, Steering Handle
for MF & EF -
63B2-63104-1 Stud Bolt
for MF & EFStud Bolt
for MF & EF -
7941303-0600 New part
for MF & EFNew part
for MF & EF -
93R3-63012-0 Grip
for MF & EFGrip
for MF & EF -
103R3-63041-0 Throttle Shaft
for MF & EFThrottle Shaft
for MF & EF -
11345-63048-0 Rubber Throttle Shaft A
for MF & EFRubber Throttle Shaft A
for MF & EF -
12350-63046-0 Bushing
for MF & EFBushing
for MF & EF -
13921803-0518 Stud Bolt
for MF & EFStud Bolt
for MF & EF -
143B2-63063-0 Supporter Throttle Shaft
for MF & EFSupporter Throttle Shaft
for MF & EF -
163B2-63035-1 Friction Piece Grip
for MF & EFFriction Piece Grip
for MF & EF -
173B2-63034-0 Adjust Screw
for MF & EFAdjust Screw
for MF & EF -
18940113-0600 Washer
for MF & EFWasher
for MF & EF -
203R3-63600-0 Throttle Wire
for MF & EFThrottle Wire
for MF & EF -
213V9-72019-0 Label,Throttle
for MF & EFLabel,Throttle
for MF & EF -
22350-67154-0 New part
for MF & EFNew part
for MF & EF -
233R3S62001-0 Bracket, steering
for MF & EFBracket, steering
for MF & EF -
243R3-62094-2 Bolt
for MF & EFBolt
for MF & EF
