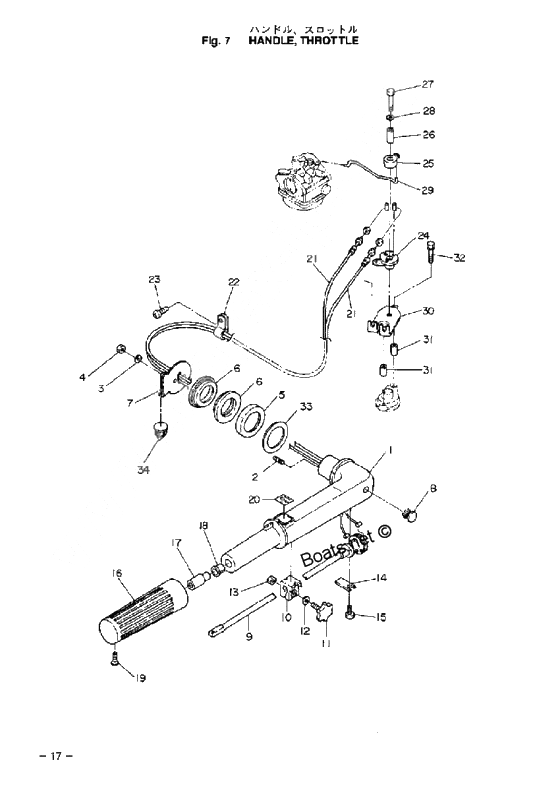

Handle, throttle для Tohatsu MFS6A2 - 2003 года выпуска
-
№АртикулНазвание
-
13H6S63011-0 Рулевой рычаг и кабельРулевой рычаг и кабель
-
23B2-63104-1 Stud BoltStud Bolt
-
3941303-0600 New partNew part
-
53H6-63026-0 Spacer, HandleSpacer, Handle
-
63H6-63102-0 Bushing, Steering HandleBushing, Steering Handle
-
73H6-63103-0 Stopper,steering handleStopper,steering handle
-
8350-67154-0 New partNew part
-
93B2-63041-0 Throttle ShaftThrottle Shaft
-
103B2-63035-1 Friction Piece GripFriction Piece Grip
-
113B2-63034-0 Adjust ScrewAdjust Screw
-
12940113-0600 Washer
or 940103-0600Washer
or 940103-0600 -
143B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
16369-63012-1 GripGrip
-
173H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
183H6-63506-0 BushingBushing
-
19920803-0518 Stud BoltStud Bolt
-
20369-72019-1 Lable throttleLable throttle
-
213H6-63600-0 Throttle WireThrottle Wire
-
22345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
243H6-63611-0 Throttel DrumThrottel Drum
-
253H6-63612-0 Throttle OpenerThrottle Opener
-
263H6-63618-0 Collar, drumCollar, drum
-
27910103-6635 BoltBolt
-
283C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
293H6-63617-0 Throttle RodThrottle Rod
-
303H6-63615-0 Bracket, throttel wireBracket, throttel wire
-
313H6-63619-1 Collar, BracketCollar, Bracket
-
32910103-6640 BoltBolt
-
333B2-63108-0 WasherWasher
-
343H6-67154-0 Anchor clip 6.5Anchor clip 6.5
