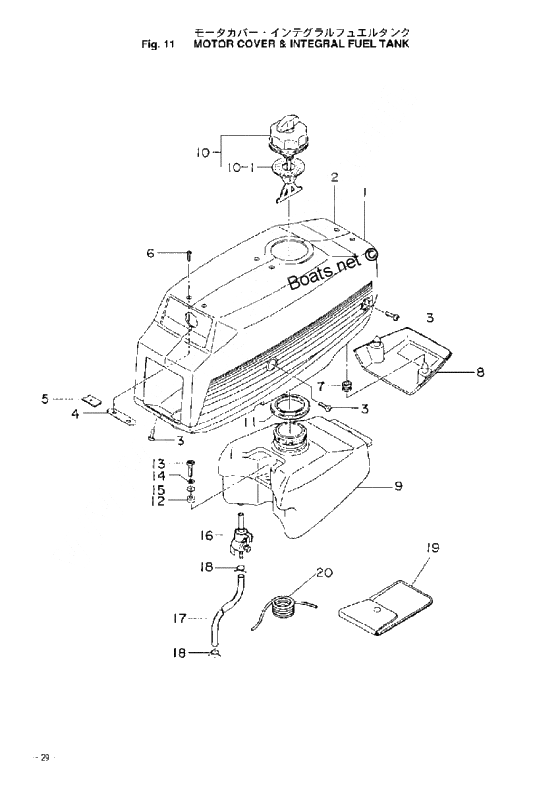

Motor cover & integral fuel tank для Tohatsu M3.5A2 - 2004 года выпуска
-
№АртикулНазвание
-
1309S67004-5 Motor cover, left (w/decal)
UniqueMotor cover, left (w/decal)
Unique -
23F0S67003-6 Motor cover right (w/decal)
UniqueMotor cover right (w/decal)
Unique -
3921503-0612 Stud BoltStud Bolt
-
4309-67006-0 Set plate motor coverSet plate motor cover
-
5309-67007-0 Nut motor cover set plateNut motor cover set plate
-
6921603-0510 Stud BoltStud Bolt
-
7307-67005-0 Grommet plug cap coverGrommet plug cap cover
-
8309S06927-1 Cover plug cap
SGCover plug cap
SG -
9309-70010-1 Fuel tankFuel tank
-
10309-70020-1 Fuel tank capFuel tank cap
-
10-1309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
11309-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
12309-70015-0 Spacer 7.2-10-6Spacer 7.2-10-6
-
13910421-0620 BoltBolt
-
14941322-0600 Spring WasherSpring Washer
-
15309-70016-0 WasherWasher
-
16309-70011-0 New partNew part
-
18338-02215-0 Clip
тИЕ10Clip
тИЕ10 -
19309-72100-0 Tool assyTool assy
-
20312-72201-0 Safety Rope
тИЕ4-1000Safety Rope
тИЕ4-1000
