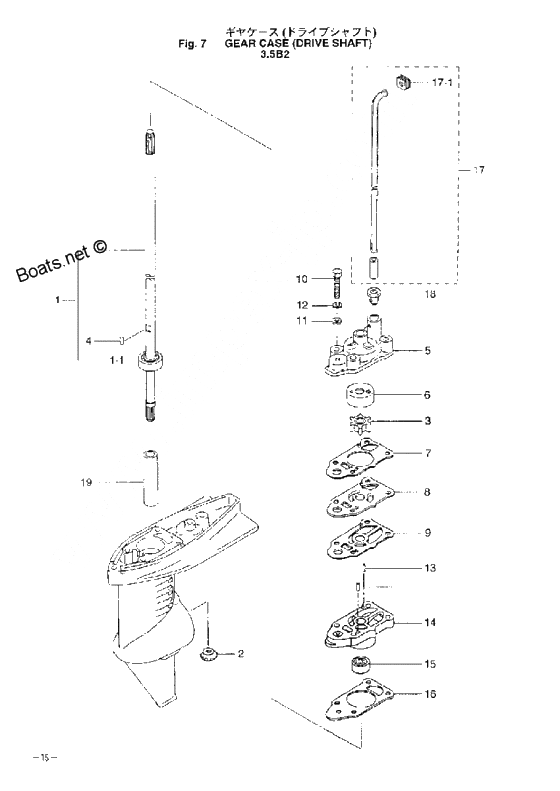

Gear case (drive shaft) для Tohatsu M3.5B2 - 2004 года выпуска
-
№АртикулНазвание
-
13F0-64301-0 Drive shaft ass'y s
for Transom SDrive shaft ass'y s
for Transom S -
13F0-64302-0 Drive shaft ass'y l
for Transom LDrive shaft ass'y l
for Transom L -
1-19601-0-6000 Ball BearingBall Bearing
-
2369-64020-0 Bevel Gear BBevel Gear B
-
3369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
4369-65022-0 Key water pump impellerKey water pump impeller
-
53F0-65016-0 Pump CasePump Case
-
63F0-65011-0 Liner Pump CaseLiner Pump Case
-
73F0-65018-0 New partNew part
-
83F0-65025-0 New partNew part
-
93F0-65029-0 New partNew part
-
11309-65031-1 Water tube grommet upperWater tube grommet upper
-
11940103-0600 WasherWasher
-
12941303-0600 New partNew part
-
133B2-65022-0 New partNew part
-
143F0-65040-1 Lower pump caseLower pump case
-
153F0-60223-0 Oil Seal 10-22-8Oil Seal 10-22-8
-
163F0-65020-0 New partNew part
-
173F0-65100-0 Water tube ass'y s
for Transom SWater tube ass'y s
for Transom S -
173F0-65110-0 Water tube ass'y l
for Transom LWater tube ass'y l
for Transom L -
183F0-65032-0 Grommet Lower Water TubeGrommet Lower Water Tube
-
193F0-64321-0 Spacer 10.1-15-72Spacer 10.1-15-72
