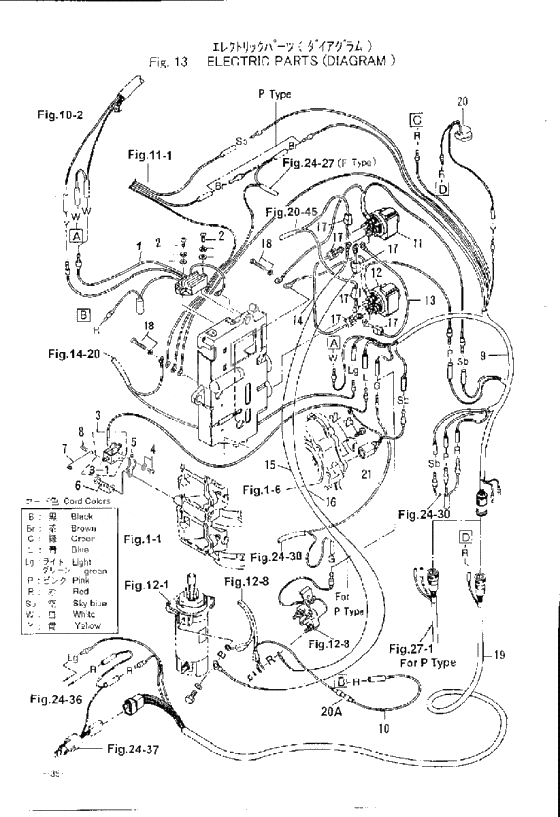

Electric parts (diagram) для Tohatsu M40D2 - 2004 года выпуска
-
№АртикулНазвание
-
13B7-76065-3 Rectifier completeRectifier complete
-
2921503-7625 Stud BoltStud Bolt
-
3361-76050-0 Choke Solenoid
for P" type"Choke Solenoid
for P" type" -
3-1361-76073-0 Plunger,Choke Solenoid
for P" type"Plunger,Choke Solenoid
for P" type" -
4921503-6408 Stud Bolt
for P" type"Stud Bolt
for P" type" -
53C8-76055-0 Bracket choke solenoid
for P" type"Bracket choke solenoid
for P" type" -
6910103-6616 Bolt
for P" type"Bolt
for P" type" -
73C8-76057-0 Hook choke solenoid
for P" type"Hook choke solenoid
for P" type" -
8951403-0312 Spring Washer
for P" type"Spring Washer
for P" type" -
93C8-76110-0 Cord ass'y aCord ass'y a
-
10353-76062-1 Fuse wire ass'yFuse wire ass'y
-
113C8-72580-0 Solenoid switch a, ptt (up)
UP, DN, L=80, L=150, for PTT type, L=900, L=1100Solenoid switch a, ptt (up)
UP, DN, L=80, L=150, for PTT type, L=900, L=1100 -
123C8-72581-0 Solenoid switch b, ptt (dn)
UP, DN, L=80, L=150, for PTT type, L=900, L=1100Solenoid switch b, ptt (dn)
UP, DN, L=80, L=150, for PTT type, L=900, L=1100 -
133C8-72582-0 Cord a solenoid switch
UP, DN, L=80, L=150, for PTT type, L=900, L=1100Cord a solenoid switch
UP, DN, L=80, L=150, for PTT type, L=900, L=1100 -
143C8-72583-1 Cord B Solenoid Switch (L=130)
UP, DN, L=80, L=150, for PTT type, L=900, L=1100Cord B Solenoid Switch (L=130)
UP, DN, L=80, L=150, for PTT type, L=900, L=1100 -
153C8-72588-0 Cord c solenoid switch
UP, DN, L=80, L=150, for PTT type, L=900, L=1100Cord c solenoid switch
UP, DN, L=80, L=150, for PTT type, L=900, L=1100 -
163C8-72589-0 Cord d solenoid switch
UP, DN, L=80, L=150, for PTT type, L=900, L=1100Cord d solenoid switch
UP, DN, L=80, L=150, for PTT type, L=900, L=1100 -
173A3-76145-0 Cap Starter Terminal
UP, DN, L=80, L=150, for PTT type, L=900, L=1100Cap Starter Terminal
UP, DN, L=80, L=150, for PTT type, L=900, L=1100 -
193C8-76119-0 Cord ass'y c
for F" type"Cord ass'y c
for F" type" -
203C8-76171-0 Over-heat Buzzer
OptionOver-heat Buzzer
Option -
213C8-76172-0 Over-heat sensor ass'y
OptionOver-heat sensor ass'y
Option -
22353-66024-0 Stopper
OptionStopper
Option -
23910103-6620 Bolt
OptionBolt
Option
