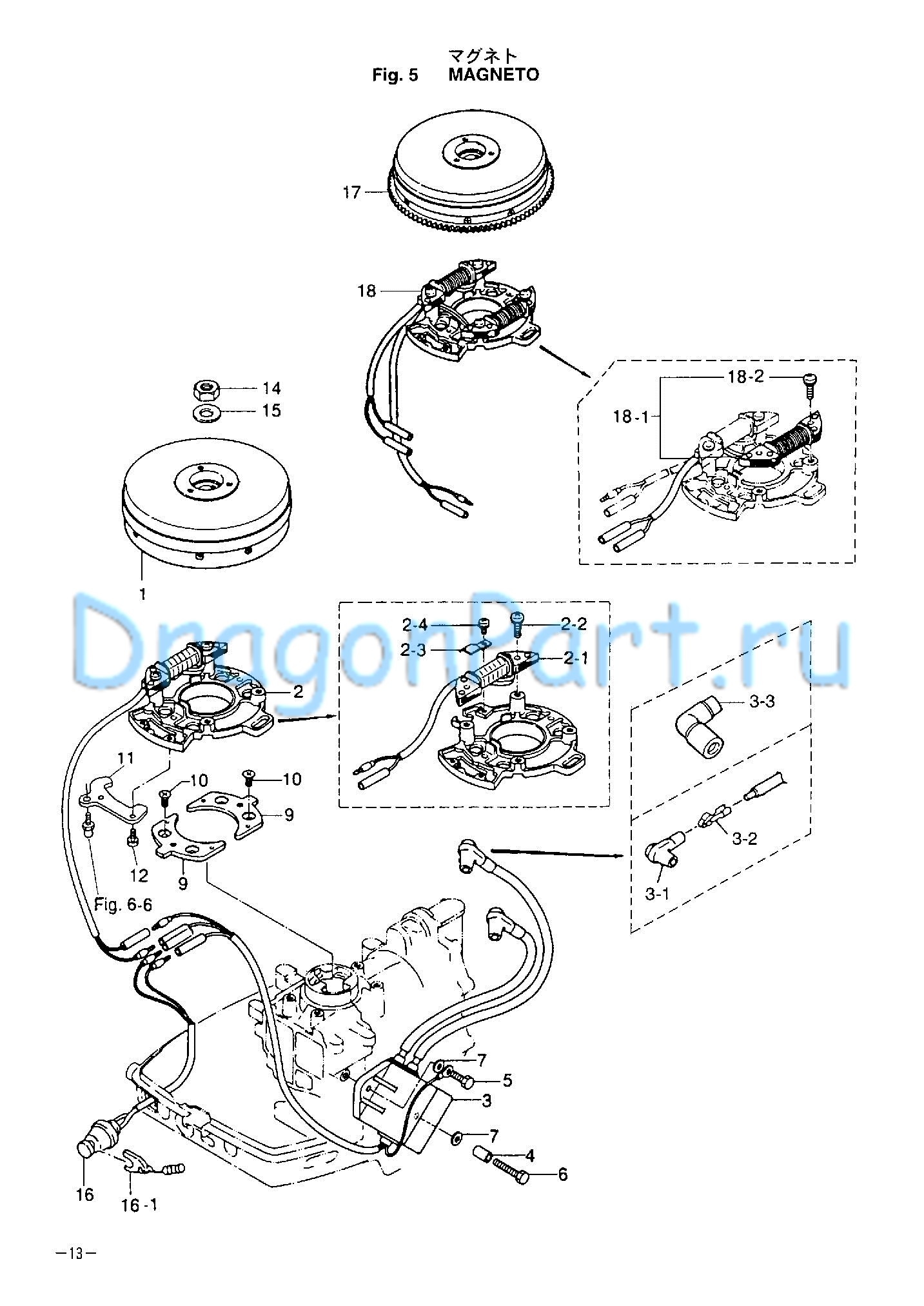

MAGNETO для Tohatsu M6B - 2004 года выпуска

№

Артикул

Название
1

3B2-06101-0 Flywheel Cup
for MF Type

Flywheel Cup
for MF Type

32 800 ₽
2

3B2-06102-1 Coil Plate Ass'y (without Alternator)
8B # 40401 - for MF Type

Coil Plate Ass'y (without Alternator)
8B # 40401 - for MF Type

27 340 ₽
2-1

3B2-06120-0 * Exciter Coil

* Exciter Coil

9 670 ₽
2-2

921521-6625 * Screw

* Screw

110 ₽
2-3

3B2-06135-0 * Holder, Magneto Cord

* Holder, Magneto Cord

170 ₽
2-4

921521-6406 * Screw

* Screw

320 ₽
3

3B2-06170-0 C.D. Unit (with Resistance Cap)

C.D. Unit (with Resistance Cap)

19 390 ₽
3-1

3M2-06291-0 * Plug Cap

* Plug Cap

780 ₽
3-2

3M2-06926-0 * Terminal, Plug Cap

* Terminal, Plug Cap

570 ₽
3-3

3C7-06921-0 * PlugCap ( with Resistance)

* PlugCap ( with Resistance)

4 610 ₽
4

3B2-06162-0 Soacer, 6.2-9-27

Soacer, 6.2-9-27

190 ₽
5

910114-0620 Bolt

Bolt

140 ₽
6

910114-0645 Bolt

Bolt

170 ₽
7

940103-0600 Washer
or 940113-0600

Washer
or 940113-0600

110 ₽
9

3B2-63724-0 Set Plate, Lower

Set Plate, Lower

500 ₽
10

921603-0612 Screw
or 621621 -0612

Screw
or 621621 -0612

150 ₽
11

3B2-05233-1 Stopper, Coil Plate

Stopper, Coil Plate

230 ₽
12

921503-6510 Screw

Screw

90 ₽
14

369-00132-0 Nut, Magneto (12P-1.25)

Nut, Magneto (12P-1.25)

290 ₽
15

940121-1200 Washer

Washer

230 ₽
16

398-06830-0 Lanyard Stop Switch

Lanyard Stop Switch

6 700 ₽
16-1

353-06821-0 * Lock, Lanvard Stoo Switch

* Lock, Lanvard Stoo Switch

1 340 ₽
