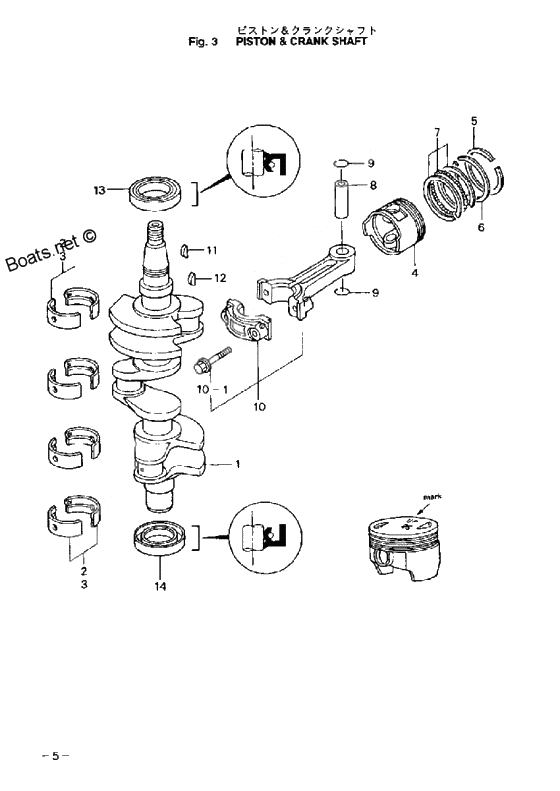

Piston & crank shaft для Tohatsu MFS25A - 2004 года выпуска

№

Артикул

Название
1

3R0-00030-1 Вал коленчатый

Вал коленчатый

67 570 ₽
2

3R0-07407-0 Bearing(red)

Bearing(red)

820 ₽
3

3R0-07408-0 Bearing(blue)

Bearing(blue)

820 ₽
4

3R0-00001-0 Piston

Piston

4 210 ₽
4

3R0-00004-0 Piston(o/s 0.5)
Option

Piston(o/s 0.5)
Option

2 970 ₽
5

3H6-00014-0 Piston Ring Top 0.5 O/S
Option

Piston Ring Top 0.5 O/S
Option

1 660 ₽
5

3H6-00011-0 Ring piston top

Ring piston top

1 800 ₽
6

3H6-00012-0 Ring piston 2nd

Ring piston 2nd

1 600 ₽
6

3H6-00015-0 Piston Ring 2nd 0.5 O/S
Option

Piston Ring 2nd 0.5 O/S
Option

1 600 ₽
7

3H6-00013-0 Ring piston oil

Ring piston oil

1 670 ₽
7

3H6-00016-0 Piston Ring Oil 0.5 O/S
Option

Piston Ring Oil 0.5 O/S
Option

1 600 ₽
8

3H6-00021-0 Палец поршня

Палец поршня

1 080 ₽
9

3H6-00024-0 Clip, Piston Pin

Clip, Piston Pin

230 ₽
10

3R0-00040-0 Conncting Rod Ass'y

Conncting Rod Ass'y

5 040 ₽
10-1

3H6-00059-0 Bolt, Connecting Rod

Bolt, Connecting Rod

880 ₽
11

334-00131-0 Key Magneto

Key Magneto

630 ₽
12

3T5-10131-0 Key, Drive Pulley
Pulley, Timing

Key, Drive Pulley
Pulley, Timing

480 ₽
13

3R0-00122-0 Oil Seal,38-50-8
Up

Oil Seal,38-50-8
Up

2 090 ₽
14

3R0-00121-0 Oil Seal.30-50-8
Lower

Oil Seal.30-50-8
Lower

2 520 ₽
