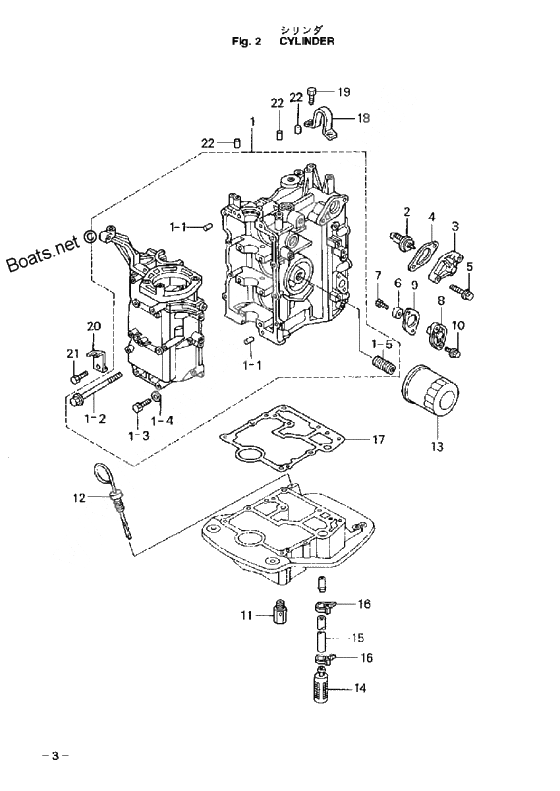

Cylinder для Tohatsu MFS30A - 2004 года выпуска
-
№АртикулНазвание
-
13R0B01100-0 Cylinder-Crankcase Ass'yCylinder-Crankcase Ass'y
-
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-23R0-01113-0 Bolt,8-90Bolt,8-90
-
1-4940113-0600 WasherWasher
-
1-53H8-07636-0 Bolt, Oil FilterBolt, Oil Filter
-
23R3-01030-0 ThermostatThermostat
-
33H6B01031-0 Cap,ThermostatCap,Thermostat
-
4346-01032-0 New partNew part
-
6369-60218-1 New partNew part
-
83H8B01143-0 Cap, anodeCap, anode
-
93R3-01144-0 O-RingO-Ring
-
113R3-07620-0 Plunger ass'yPlunger ass'y
-
123R3-07421-2 Oil level gaugeOil level gauge
-
133R0-07615-0 Oil Filter Ass'yOil Filter Ass'y
-
143R3-07410-0 Oil Strainer Ass'yOil Strainer Ass'y
-
16369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
173R0-01303-0 Gasket,Engine BaseGasket,Engine Base
-
183C7-01513-2 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
3C7B01513-0 Hanger - when out use 3c7b015131Hanger - when out use 3c7b015131
-
19910114-5820 BoltBolt
-
203R0-69000-0 Bracket,Starter Lock CableBracket,Starter Lock Cable
-
22345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
