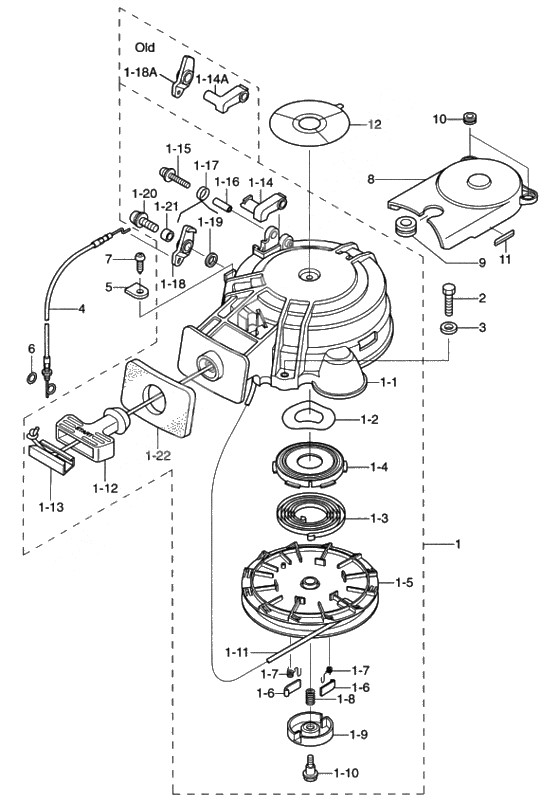

Recoil starter для Tohatsu MFS9.8A2 - 2004 года выпуска
-
№АртикулНазвание
-
13AA-05090-0 Recoil starter
# 023322XD~Recoil starter
# 023322XD~ -
13V1-05090-0 Recoil starter ass'y
~# 018314XDRecoil starter ass'y
~# 018314XD -
1-13AA-05098-0 Starter Case
# 023322XD~Starter Case
# 023322XD~ -
1-13V1-05098-0 Starter Case
~# 018314XDStarter Case
~# 018314XD -
1-103R1-05138-1 Bolt, Starter Shaft
OR 3B2-05138-0Bolt, Starter Shaft
OR 3B2-05138-0 -
1-113AA-05013-0 Stater Rope
ø4.5-1620 / OR 3B2-05013-0Stater Rope
ø4.5-1620 / OR 3B2-05013-0 -
1-123AA-05019-0 Stater Handle
# 023322XD~Stater Handle
# 023322XD~ -
1-123R1-05019-0 Starter Handle
~# 018314XDStarter Handle
~# 018314XD -
1-133R1-05131-0 Rope anchorRope anchor
-
1-143AA-05252-0 Stater Lock
# 023322XD~Stater Lock
# 023322XD~ -
1-14A3R1-05252-0 Starter Lock
~# 018314XD / OR 338-05252-0Starter Lock
~# 018314XD / OR 338-05252-0 -
1-15921503-5430 Stud BoltStud Bolt
-
1-163R1-05255-0 Coller Starter Lock Shaft
OR 338-05255-0Coller Starter Lock Shaft
OR 338-05255-0 -
1-173R1-05216-0 Spring, Starter Lock
OR 338-05216-0Spring, Starter Lock
OR 338-05216-0 -
1-183AA-05253-0 Cam stater lock
# 023322XD~Cam stater lock
# 023322XD~ -
1-18A3V1-05253-0 Starter lock cam
~# 018314XDStarter lock cam
~# 018314XD -
1-19940113-0600 WasherWasher
-
1-23V1-05259-0 WasherWasher
-
1-20921503-7616 Stud BoltStud Bolt
-
1-213R1-05215-0 collar,6.1-8-6.5collar,6.1-8-6.5
-
1-223AA-67503-0 Seal Ruber,Stater
# 023322XD~Seal Ruber,Stater
# 023322XD~ -
1-33AA-05004-0 Spring Washer
# 023322XD~Spring Washer
# 023322XD~ -
1-33R1-05004-0 Stater Spring
~# 018314XD / OR 3B2-05010-0 (WITH CASE)Stater Spring
~# 018314XD / OR 3B2-05010-0 (WITH CASE) -
1-43R1-05125-0 Case, Stater SpringCase, Stater Spring
-
1-53V1-05104-1 ReelReel
-
1-63R1-05003-1 Ratchet
OR 3B2-05003-0Ratchet
OR 3B2-05003-0 -
1-73R1-05012-0 Return SpringReturn Spring
-
1-83R1-05007-0 Spring Washer
OR 369-05007-0Spring Washer
OR 369-05007-0 -
1-93R1-05006-1 Friction Plate
OR 3B2-05006-0Friction Plate
OR 3B2-05006-0 -
2910113-0625 BoltBolt
-
33R0-66308-0 Washer
2 FOR EF & EPWasher
2 FOR EF & EP -
43V1-05207-0 Wire,Starter LockWire,Starter Lock
-
5332-66033-0 Retainer Cam ShiftRetainer Cam Shift
-
63C7-03271-0 O-RingO-Ring
-
73V1-05913-0 Tapping Screw
OLD PART NO. 3V1-05208-0Tapping Screw
OLD PART NO. 3V1-05208-0 -
83V1-06308-0 Cover BeltCover Belt
-
93V1-06302-0 Rubber MountRubber Mount
-
10172-36008-0 GrommetGrommet
-
113H6-72026-0 Label, Spark PlugLabel, Spark Plug
-
123R0-72181-0 Caution Label BCaution Label B
