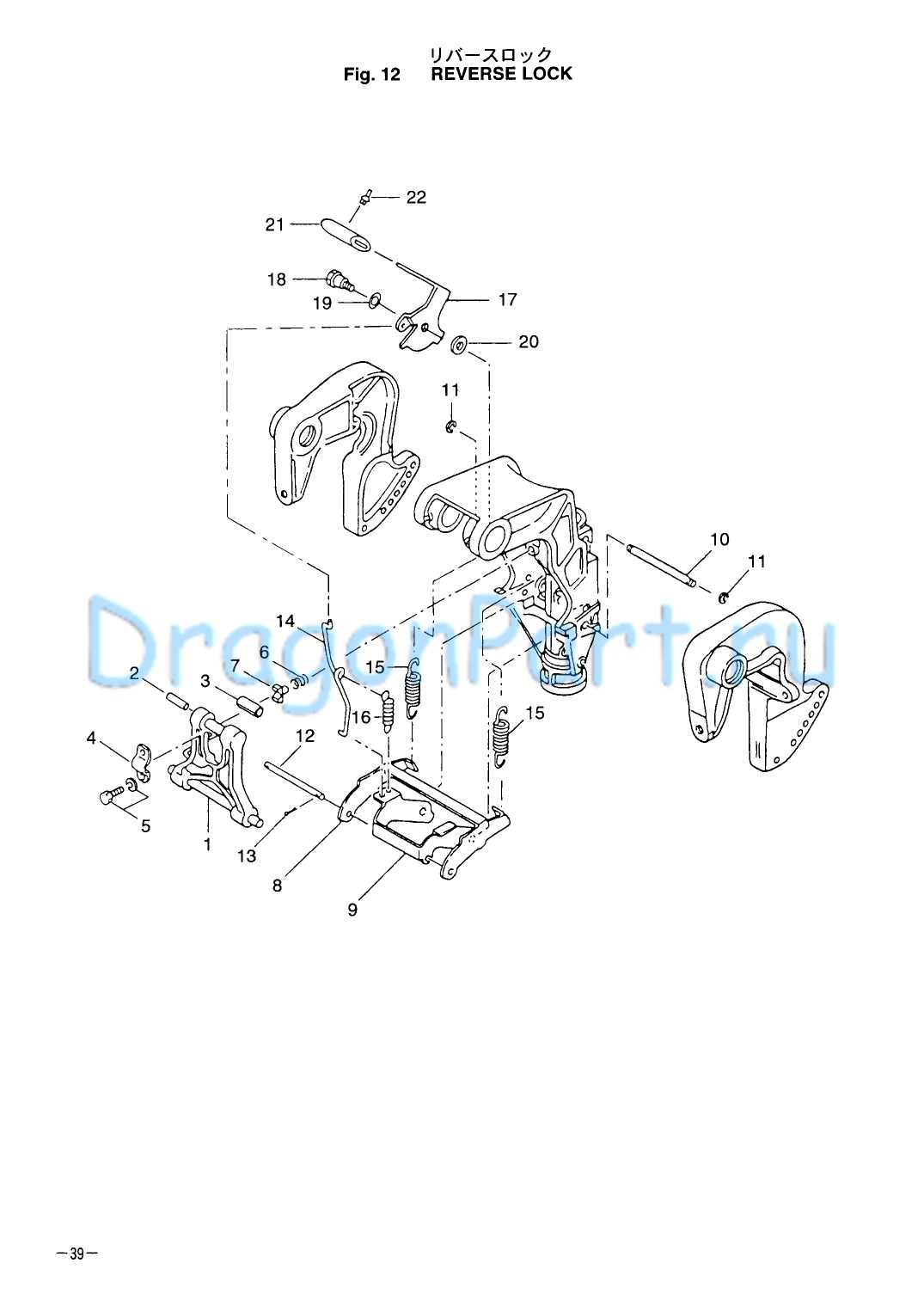

REVERSE LOCK для Tohatsu M18E2 - 2005 года выпуска
-
№АртикулНазвание
-
13G2S62431-0 Tilt StopperTilt Stopper
-
2951403-0535 Spring Pin, 5-35Spring Pin, 5-35
-
3350-62437-0 Bushing, 8.2-10-26.5Bushing, 8.2-10-26.5
-
4350-62439-1 Set Plate, Tilt StopperSet Plate, Tilt Stopper
-
5910113-5818 BoltBolt
-
6308-62421-1 Friction Spring, Tilt StopperFriction Spring, Tilt Stopper
-
7346-62438-0 Set PieceSet Piece
-
83G2-66351-0 Reverse Lock "A"Reverse Lock "A"
-
93G2-66313-1 Arm, Reverse LockArm, Reverse Lock
-
103G2-66319-1 A Shaft, Reverse Lock "A”A Shaft, Reverse Lock "A”
-
11945303-0600 E-Ring, d二6E-Ring, d二6
-
123G2-66321-0 Rod, Reverse Lock “A”Rod, Reverse Lock “A”
-
13951503-0212 Split Pin, 2-12Split Pin, 2-12
-
143G2-66312-0 Link, Reverse Lock "A"Link, Reverse Lock "A"
-
153G2-66331-0 Spring, Reverse LockSpring, Reverse Lock
-
16350-66315-0 Spring, Reverse Lock LinkSpring, Reverse Lock Link
-
173G2-66311-0 Lever, Reverse Lock LinkLever, Reverse Lock Link
-
183V9-05254-0 Shaft, Reverse Lock LeverShaft, Reverse Lock Lever
-
19941403-0800 Wave Washer, d二8Wave Washer, d二8
-
203R0-66308-0 Washer, 6-16-1.5Washer, 6-16-1.5
-
21346-66333-0 Grip, Reverse Lock LeverGrip, Reverse Lock Lever
-
22346-66334-0 Stopper, GripStopper, Grip
Все узлы модели:
- CYLINDER CRANK CASE ASS`Y
- PISTON CRANK SHAFT
- INLET REED VALVE
- CARBURETOR FUEL FILTER
- MAGNETO
- THROTTLE MECHANISM TILLER HANDLE
- RECOIL STARTER STARTER LOCK
- DRIVESHAFT HOUSING GEAR CASE
- TRANSMISSION WATER PUMP
- GEAR SHIFT
- BRACKET
- • REVERSE LOCK
- MOTOR COVER
- SEPARATE FUEL TANK (Plastic) ACCESSORIES
- POTIONAL PARTS REMOTE CONTROL
- OPTIONAL PARTS DRAG LINK/ REVERSE LOCK
- POTIONAL PARTS ELECTRIC STARTER
- OPTIONAL PARTS ACCESSORIES
- ASSEMBLY KIT
