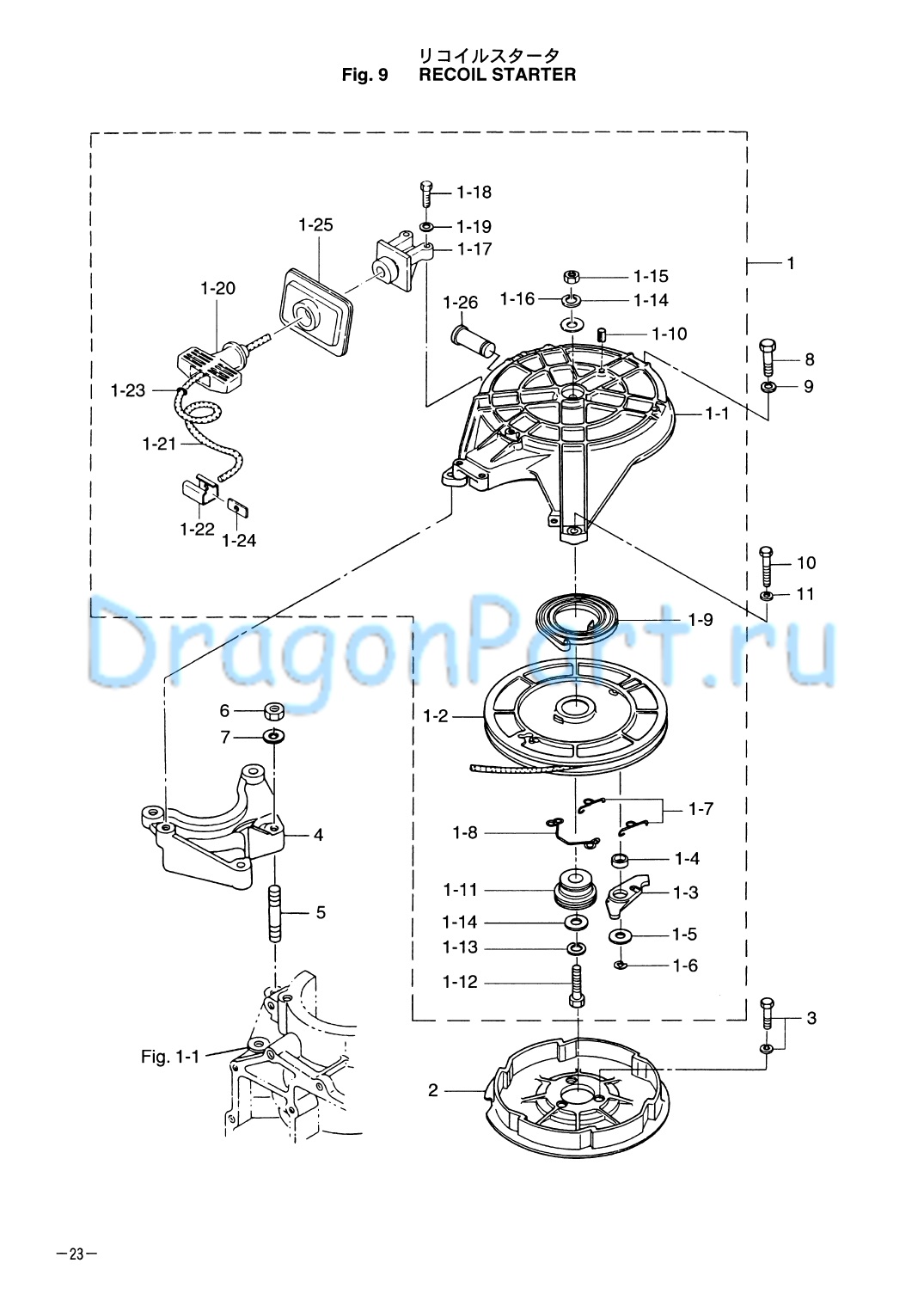

RECOIL STARTER для Tohatsu M30A4 - 2005 года выпуска
-
№АртикулНазвание
-
1346-05000-1 Recoil StarterRecoil Starter
-
1-1345-05105-1 * Starter Case* Starter Case
-
1-2345-05104-1 * Reel* Reel
-
1-3345-05003-1 * Ratchet* Ratchet
-
1-4345-05135-1 * Bushing, Ratchet* Bushing, Ratchet
-
1-5345-05122-0 * Washer, 6.5-23-1.5* Washer, 6.5-23-1.5
-
1-6945303-0500 * E-Ring, d=5* E-Ring, d=5
-
1-7345-05123-0 * Ratchet Guide “A”* Ratchet Guide “A”
-
1-8345-05124-0 * Ratchet Guide “B"* Ratchet Guide “B"
-
1-9345-05004-0 * Starter Spring* Starter Spring
-
1-10951403-0316 * Spring Pin, 3-16* Spring Pin, 3-16
-
1-11345-05132-0 * Starter Shaft* Starter Shaft
-
1-12910114-0830 * Bolt* Bolt
-
1-13941322-0800 * Spring Washer* Spring Washer
-
1-14940121-0800 * Washer* Washer
-
1-15930103-0800 * Nut
or 910113-0800* Nut
or 910113-0800 -
1-16941322-0800 * Spring Washer* Spring Washer
-
1-17336-05014-0 * Guide, Starter Rope* Guide, Starter Rope
-
1-18910114-0625 * Bolt* Bolt
-
1-19941303-0600 * Spring Washer* Spring Washer
-
1-20338-05019-0 * Starter Handle* Starter Handle
-
1-21345-05013-1 * Starter Rope
Ø 5-2000* Starter Rope
Ø 5-2000 -
1-22338-05131-0 * Rope Anchor* Rope Anchor
-
1-23350-05136-0 * O-Ring, 2.5-4.5* O-Ring, 2.5-4.5
-
1-24345-05134-0 * Plate, Rope Anchor* Plate, Rope Anchor
-
1-25346-05116-1 * Seal Plate, Starter* Seal Plate, Starter
-
1-26345-05225-0 * Shaft, Starter Lock Lever* Shaft, Starter Lock Lever
-
2345-05901-1 Starter PulleyStarter Pulley
-
3910121-6625 BoltBolt
-
4346B05101-1 Starter BracketStarter Bracket
-
5915314-0825 Stud BoltStud Bolt
-
6930121-0800 NutNut
-
7940121-0800 WasherWasher
-
8910114-0830 BoltBolt
-
9941303-0800 Spring WasherSpring Washer
-
10910114-0625 BoltBolt
-
11941303-0600 Spring WasherSpring Washer
