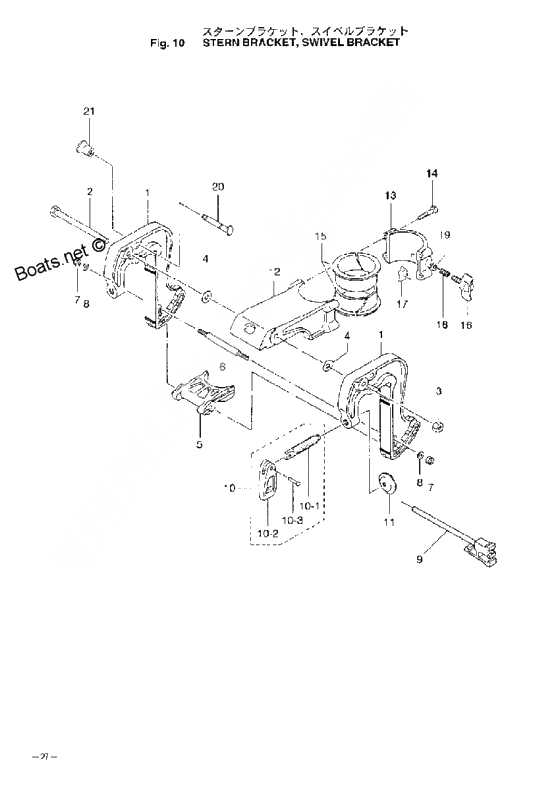

Stern bracket, swivel bracket для Tohatsu M3.5B2 - 2005 года выпуска
-
№АртикулНазвание
-
1309S62111-4 Stern bracketStern bracket
-
1369-62103-0 Винт струбциныВинт струбцины
-
2309-62115-1 Bolt, stern bracketBolt, stern bracket
-
2307S62102-1 Handle, clamp screwHandle, clamp screw
-
33C8-62104-1 Rivet3-22Rivet3-22
-
4307-62116-0 Washer, stern bracketWasher, stern bracket
-
5309-62212-2 Thrust supporterThrust supporter
-
6309-62118-0 Distance piece bracketDistance piece bracket
-
7930103-0600 NutNut
-
8941303-0600 New partNew part
-
93F0-62160-0 Thrust Rod Ass'yThrust Rod Ass'y
-
10369S62100-1 Clamp Screw Ass'yClamp Screw Ass'y
-
11332-62101-0 Pad clamp screwPad clamp screw
-
12309S62391-1 Swivel bracket aSwivel bracket a
-
13309S62392-1 Swivel bracket bSwivel bracket b
-
14910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
15309-62321-1 Pivot bushingPivot bushing
-
16309S62442-1 Steering adjust screwSteering adjust screw
-
17309-62441-2 Friction PieceFriction Piece
-
18309-62446-0 Steering adjust springSteering adjust spring
-
19940103-0600 WasherWasher
-
20309-62464-0 Tilt StopperTilt Stopper
-
21309-62463-0 Knob Tilt StopperKnob Tilt Stopper
