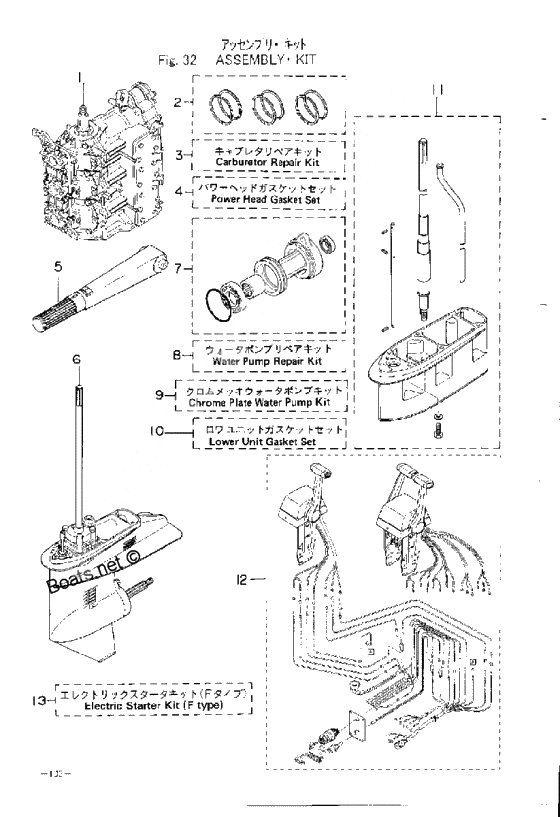

Assembly kit для Tohatsu M40D2 - 2005 года выпуска
-
№АртикулНазвание
-
23C8-87123-0 Кольца поршневыеКольца поршневые
-
2356-00011-0 1-е поршневое кольцо1-е поршневое кольцо
-
2346-00011-0 2-е поршневое кольцо2-е поршневое кольцо
-
23C8-87124-0 Кольца поршневыеКольца поршневые
-
2356-00014-0 New partNew part
-
2346-00014-0 Кольцо поршневое(+0,5мм)Кольцо поршневое(+0,5мм)
-
3922532-6412 Stud Bolt
or 922532-0412Stud Bolt
or 922532-0412 -
33C8-87122-1 Carburetor kit 40/50d-d2Carburetor kit 40/50d-d2
-
3C8-87122-2 Carburetor kit 40/50d-d2Carburetor kit 40/50d-d2
-
33C8-03193-0 PackingPacking
-
33C8-03169-0 PlugPlug
-
33C8-03181-0 Cover PlateCover Plate
-
33C8-03147-0 Float ValveFloat Valve
-
33E3-03147-0 Float ValveFloat Valve
-
33C8-03182-0 Gaket plate coverGaket plate cover
-
33C8-03126-0 Float Arm PinFloat Arm Pin
-
33C8-03125-0 FloatFloat
-
33C8-03121-0 O-RingO-Ring
-
43C8-01024-1 Gasket, cylinder head cover
50D2#64893-Gasket, cylinder head cover
50D2#64893- -
4151-33159-0 Gasket,combination gaugeGasket,combination gauge
-
4353-01032-0 Прокладка крышки термостатаПрокладка крышки термостата
-
43C8-02104-0 Gasket inlet manifoldGasket inlet manifold
-
4346-01216-0 O-Ring
Crank Case HeadO-Ring
Crank Case Head -
43B7-02235-0 O-Ring AO-Ring A
-
43C8-01215-0 Oil Seal 16-28-7
Drive ShaftOil Seal 16-28-7
Drive Shaft -
43B7-02236-0 O???? bO???? b
-
4334-00122-0 Oil seal 25-40-8
Lower sideOil seal 25-40-8
Lower side -
43C8-87121-4 Power Head Gasket Set
40D2#49862-Power Head Gasket Set
40D2#49862- -
43C8-01303-0 Gasket engine baseGasket engine base
-
43C8-02305-0 Прокладка крышки выходаПрокладка крышки выхода
-
43C8-01005-4 Прокладка под головку
40D2#49862-Прокладка под головку
40D2#49862- -
43C8-00108-0 O-Ring
Upper BearingO-Ring
Upper Bearing -
43C8-09082-0 Gasket blind plateGasket blind plate
-
53E3S63010-0 Tiller handle assy.Tiller handle assy.
-
3C8Q63003-1 Tiller handle assy.Tiller handle assy.
-
63C8S87301-4 Lower unit ass'y s
for transom S""Lower unit ass'y s
for transom S"" -
63C8S87302-4 Lower unit ass'y l
for transom L""Lower unit ass'y l
for transom L"" -
63T5Q87304-3 Lower unit assy ul (amb)
For Transom UL""Lower unit assy ul (amb)
For Transom UL"" -
73C8S60100-0 Propeller shaft housing ass'yPropeller shaft housing ass'y
-
8332-65022-0 Key, pump impellerKey, pump impeller
-
83C8-65011-1 Liner,pump?caseLiner,pump?case
-
83C8-65025-0 GUIDE PLATE,PUMPGUIDE PLATE,PUMP
-
83C8-65029-0 Gasket, pump guide plateGasket, pump guide plate
-
83C8-65018-1 Прокладка насосаПрокладка насоса
-
83C8-87322-1 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
83C8-65021-2 Impeller water pumpImpeller water pump
-
93C8-65238-1 Liner,chrome plated pump caseLiner,chrome plated pump case
-
93C8-65029-0 Gasket, pump guide plateGasket, pump guide plate
-
93C8-65231-1 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
103C8-66032-0 O-Ring
BushingO-Ring
Bushing -
103B7-60016-0 O-RingO-Ring
-
10345-60103-0 O-Ring
Propeller ShaftO-Ring
Propeller Shaft -
103C8-87321-1 Lower Unit Gasket SetLower Unit Gasket Set
-
10334-60223-0 Oil seal, 22-36-10
Propeller ShaftOil seal, 22-36-10
Propeller Shaft -
103C8-61012-0 Gasket drive shaft housingGasket drive shaft housing
-
103C8-60223-0 Packing 17-33-6Packing 17-33-6
-
103C8-02312-0 Gasket exhaust pipeGasket exhaust pipe
-
10345-65015-0 O-Ring
Pump Case LowerO-Ring
Pump Case Lower -
103C8-61181-0 Gasket exhaust housingGasket exhaust housing
-
10332-66021-0 O-Ring
Cam RodO-Ring
Cam Rod -
10332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
113C8S87314-0 Extension housing kit ul
FOR TRANSOM XLExtension housing kit ul
FOR TRANSOM XL -
123B7-84490-1 Top mount remote control ass'y kit(rc6f)
for SingleTop mount remote control ass'y kit(rc6f)
for Single -
123B7-84540-1 Twin top mount remocon kit(rc6ft)
for TwinTwin top mount remocon kit(rc6ft)
for Twin -
13921503-7625 Stud BoltStud Bolt
-
13910103-6614 BoltBolt
-
13309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
13910103-6820 BoltBolt
-
133C8-76007-0 Rubber Starter MotorRubber Starter Motor
-
133C8-76110-0 Cord ass'y aCord ass'y a
-
133C8-76141-0 STARTER CORD
L=160STARTER CORD
L=160 -
13910103-0610 Bolt
or 910113-0610Bolt
or 910113-0610 -
133C8-71035-0 Plate fuel filterPlate fuel filter
-
133C8-76009-0 Band Starter MotorBand Starter Motor
-
13353-76062-1 Fuse wire ass'y
l=900Fuse wire ass'y
l=900 -
133B7-76120-0 Battery Cord
L=3000Battery Cord
L=3000 -
13353-06972-0 ClampClamp
-
133C8-76060-0 Rectifier completeRectifier complete
-
13910103-5820 Bolt
or 910103-6820Bolt
or 910103-6820 -
133C8-76119-0 Cord ass'y c
L=570Cord ass'y c
L=570 -
133C8-76300-0 Electric starter kit (f)Electric starter kit (f)
-
133A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
13910403-0612 BoltBolt
-
13346-76040-0 Starter SolenoidStarter Solenoid
-
133C8-76020-2 Main SwitchMain Switch
-
133B7-76093-0 Grommet, 25-5Grommet, 25-5
-
133B7-76145-0 Terminal CapTerminal Cap
-
13910103-6616 BoltBolt
-
133C8-76080-0 Neutral Switch Ass'yNeutral Switch Ass'y
-
13910103-6825 Stud BoltStud Bolt
-
133C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
133B7-76065-3 Rectifier completeRectifier complete
-
133B7-63731-0 WasherWasher
-
13910103-5825 Bolt
or 910103-6825Bolt
or 910103-6825
