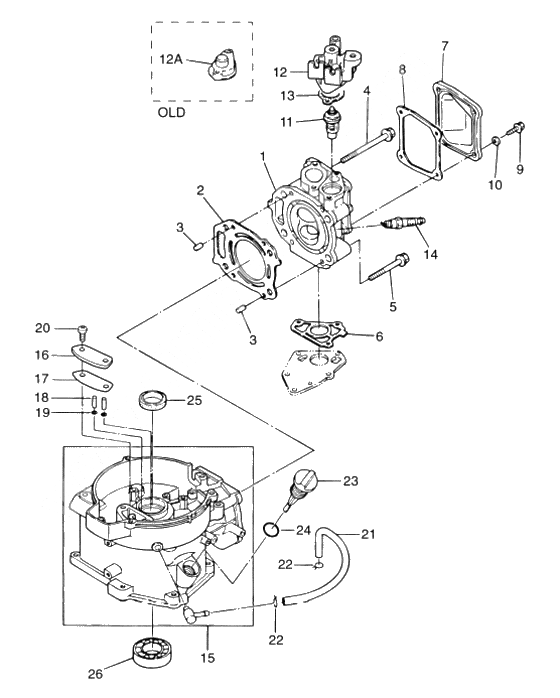

Cylinder & cylinder head для Tohatsu MFS5B - 2005 года выпуска
-
№АртикулНазвание
-
13R4B01001-1 Cylinder Head Comp.Cylinder Head Comp.
-
23H6-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H6-01012-0 Bolt, Cyl. Head
01.08.1990 0:00:00Bolt, Cyl. Head
01.08.1990 0:00:00 -
53H6-01013-0 Bolt, Cyl. Head
01.08.1960 0:00:00Bolt, Cyl. Head
01.08.1960 0:00:00 -
63H6-02306-0 Gasket,exh.portGasket,exh.port
-
73H6B01021-0 Cover,Cyl.headCover,Cyl.head
-
83H6-01024-0 Gasket,head CoverGasket,head Cover
-
9910121-0616 Bolt
OR 910113-0616Bolt
OR 910113-0616 -
103R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
113H6-01030-0 Thermostat
MARK 5BThermostat
MARK 5B -
123H9B01031-1 Cap thermostat b models
# 023742XE~ F6B/5B/4B~Cap thermostat b models
# 023742XE~ F6B/5B/4B~ -
13346-01032-0 New partNew part
-
149701-1-1103 Spark plug (dcpr6e)
NGK DCPR6ESpark plug (dcpr6e)
NGK DCPR6E -
153ASB01184-0 Cylinder 4/5/6b 4-st. (amb)
#023742XE~ ~F6B/5B/4BCylinder 4/5/6b 4-st. (amb)
#023742XE~ ~F6B/5B/4B -
153R1B01100-4 Sylinder comp.
#020184XE~ ~F6A2/5A2/4A2Sylinder comp.
#020184XE~ ~F6A2/5A2/4A2 -
163ASB07431-0 Cap breather chamber 4/5/6b
#023742XE~ ~F6B/5B/4BCap breather chamber 4/5/6b
#023742XE~ ~F6B/5B/4B -
163R1B07431-1 Cap breezerchamber(5a new)
#020184XE~ ~F6A2/5A2/4A2Cap breezerchamber(5a new)
#020184XE~ ~F6A2/5A2/4A2 -
173AS-07432-0 Gasket breather cap
#023742XE~ ~F6B/5B/4BGasket breather cap
#023742XE~ ~F6B/5B/4B -
173R1-07432-1 Gasket, breezer cap(5a new)
#020184XE~ ~F6A2/5A2/4A2Gasket, breezer cap(5a new)
#020184XE~ ~F6A2/5A2/4A2 -
183R1-07439-0 Collar, Breather(5A new)Collar, Breather(5A new)
-
19941403-0500 WasherWasher
-
20921521-6616 Stud Bolt
OR 921503-6616Stud Bolt
OR 921503-6616 -
213R1-07435-0 Breezer Pipe(5A New)Breezer Pipe(5A New)
-
223C7-02215-0 ClipClip
-
233H6-07421-0 Filler Cap, Engine- OilFiller Cap, Engine- Oil
-
243H6-07422-0 New partNew part
-
25101-00121-0 Oil seal,20-35-7Oil seal,20-35-7
-
269601-3-6205 Ball BearingBall Bearing
