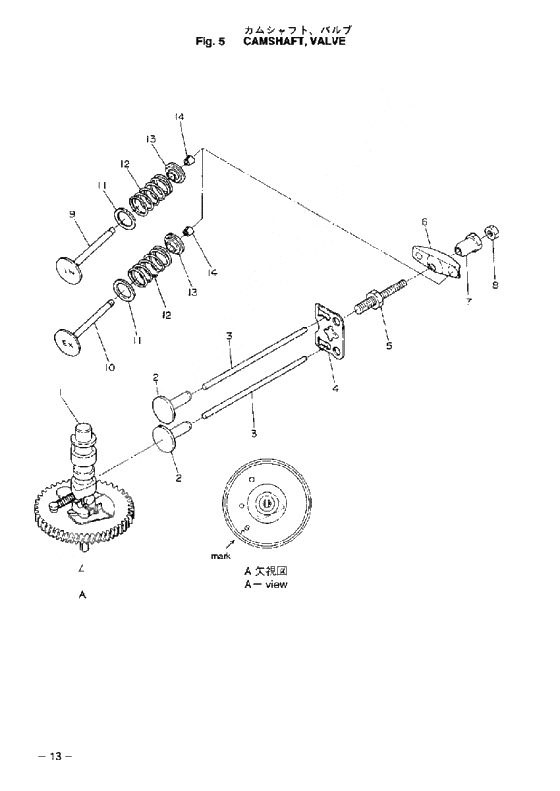

Camshaft valve для Tohatsu MFS6A2 - 2005 года выпуска
-
№АртикулНазвание
-
13R4-07010-0 Camshaft ass'y(6a)
mark 6Camshaft ass'y(6a)
mark 6 -
23H6-07231-0 LifterLifter
-
33H6-07232-0 Push RodPush Rod
-
43H6-07233-0 Prate, Push RodPrate, Push Rod
-
53H6-07234-0 Stud BoltStud Bolt
-
63H6-07235-0 Rocker armRocker arm
-
73H6-07236-0 Pivot, Rocker ArmPivot, Rocker Arm
-
83H6-07237-0 Регулятор гаечныйРегулятор гаечный
-
93H6-07201-0 Floato Valve AssyFloato Valve Assy
-
103H6-07202-0 Valve, exhValve, exh
-
113H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
123H6-07203-1 Пружина клапанаПружина клапана
-
133H6-07221-0 Retaine,int. & Exh.Retaine,int. & Exh.
-
143H6-07223-0 CotterCotter
